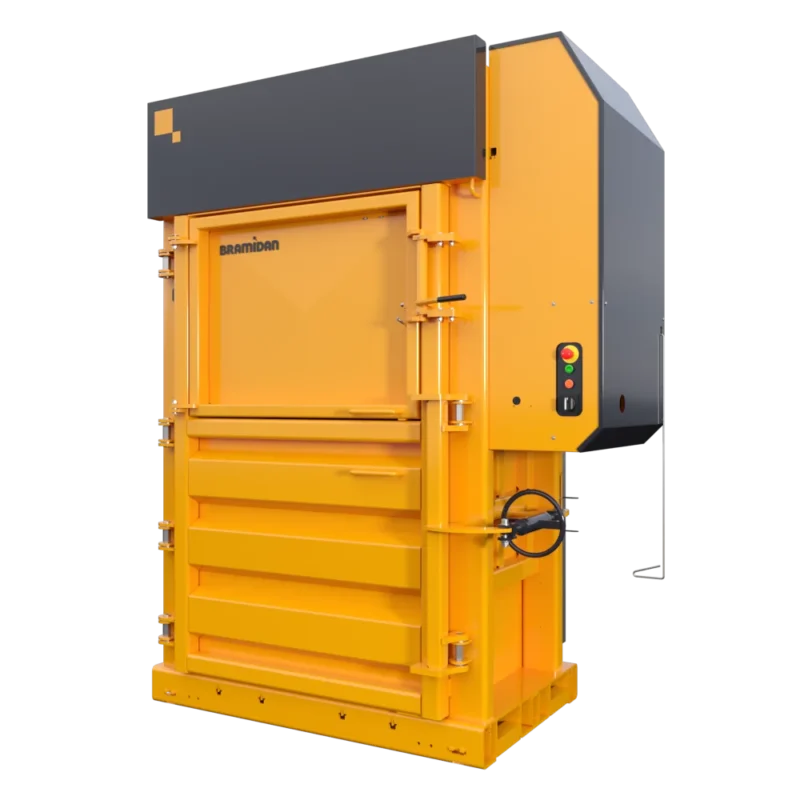

VERTICAL BALER
Baler X50 HD
VERTICAL BALER
VERTICAL BALER
Efficient compaction
The X50 HD baler compacts heavy-duty materials quickly and efficiently. Easily bale aluminum and tin cans, hard plastic (PET), soft expandable plastic, and paper.
Produce heavy bales
High-capacity machine that produces heavy bales of up to 1,200 lbs. It has a long lifetime due to the unique design and reliable hydraulics.
X50 HD – Industrial strength baler:
- Most material types are compacted easily
- Impressive compression ratio
- Very little expansion of material between press cycles
- Tie off finished bales with either steel wire or plastic strapping
- Fast press cycle
- Electrical control panel safe and easy to access
- All moving parts located inside machine

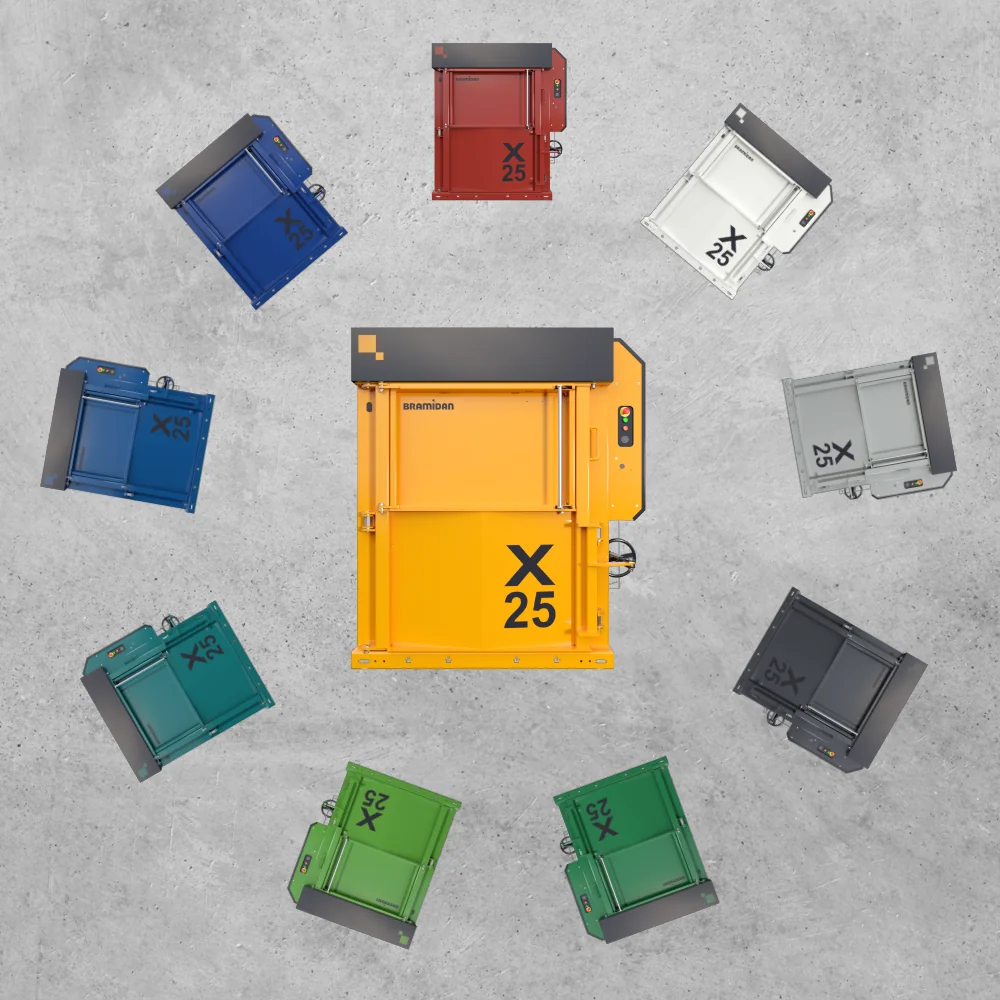

- Powder Coating provides durable finish in many colors
Time-saving and easy waste handling
- Load your recyclables into vertical baler.
- A full-bale light tells you when the baler is full.
- Tie off and eject the compacted bale.
- Remove the bale with a pallet jack for storage untill collection.
| Bale weight cardboard (lbs) | 750-1,000 |
| Bale weight plastic foil (lbs) | 850-1,200 |
| Press force (lbs) | 110,000 |
| Power supply | 208/230/480V 3-phase 60Hz |
| Motor (HP) | 7.5 |
| Noise Level (dB) | 62-64 |
| Cycle time avg. (sec) | 18 |
| Dimensions WxDxH (inch) | 78 x 54 x 100 |
| Weight (lbs) | 5,370 |
| Feed opening WxH (inch) | 43 x 24 |
| Load height (inch) | 48 |
| Chamber height (inch) | 67 |
| Stroke (inch) | 48 |
| Number of ties | 4 |
| Type of tying | Twine / Steel wire |
| Full bale light | Yes |
| Bale eject | Automatic |
| Waste volume | Large |
Monitor and Optimize with BRA-IN
With real-time data and automated notifications, you can make better decisions, cut operational costs, and document your sustainability efforts.
BRA-IN stands for Bramidan Intelligence and connects your equipment directly to an easy-to-use platform – letting you track fill levels, optimize pickups, and schedule maintenance – all in one seamless solution.
Combine our BRA-IN services to fit your needs
We offer a door solution that does not swing outwards. To allow more direct access to the chamber from all sides and provide more space around the baler, we have designed a manual vertical door that opens upwards on our B-series machines.
This door option is designed for sites with a narrow, limited amount of space.
Yes, our X-series balers are perfect for compacting aluminum waste. These models are designed with X-shaped internal cylinders that create a very high press force. As a result, you are left with a very tight bale that is compacted during the first press cycle.
We recommend our X30 HD and X50 HD balers if you are planning on baling aluminum waste. To keep the bale stable, we suggest laying a piece of cardboard on both the top and bottom prior to compacting. Another option is to cover the finished bale with shrink wrap.
Yes, you can bale cans and other light metal waste (ie. aluminum) in a baler.
To bale cans, you will need a machine with a high press force that will compact the material during the first press cycle. With cross cylinders and long cylinder strokes, our X-series balers are designed for compacting cans and other heavy duty materials.
For a tight and stable bale, we suggest layering a piece of cardboard on both the top and bottom of the finished bale. Another option is to cover the finished bale in shrink wrap.
Vertical balers are compact, cost-effective, and well-suited for manual workflows and moderate volumes of waste such as cardboard and plastic. They compress material from the top down and take up minimal space, making them easier to place and install—especially in smaller businesses or locations with limited room.
Horizontal balers are designed to handle larger volumes of waste and offer a higher degree of automation. They compress material from the side and can be integrated with conveyors, shredders, and other automated systems. This reduces the need for manual labor and increases operational efficiency. However, they require more space and a higher investment.
Our Flap Door is specially developed for handling PET bottles.
The Flap Door works just like a chute for the bottles and makes it easy to throw bottles directly into the baler either separately or in full sacks.
