VERTICAL BALER

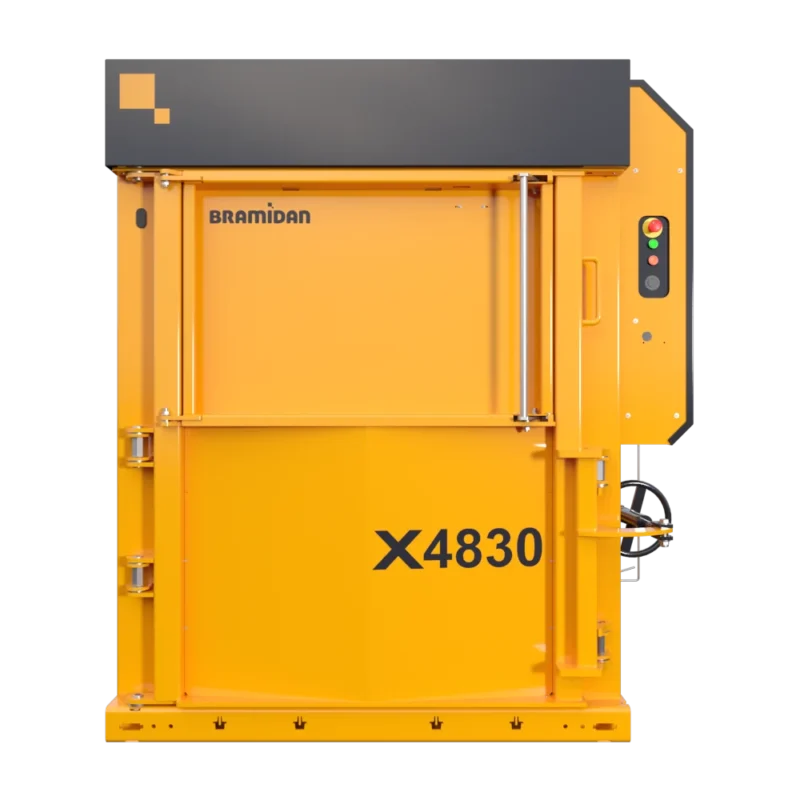

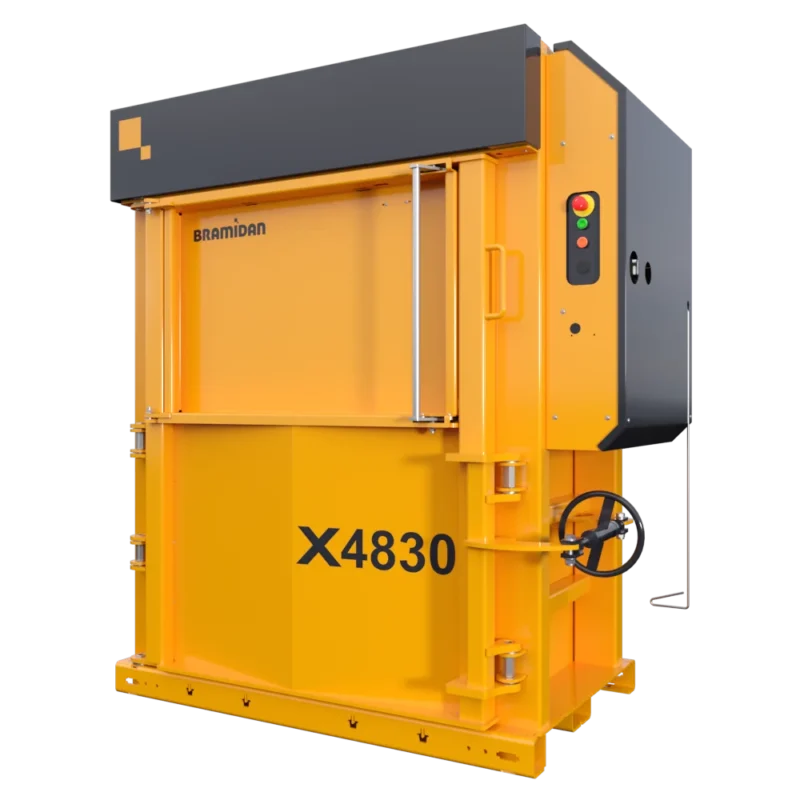

Baler X4830
VERTICAL BALER
VERTICAL BALER
Durable machine with superior press force
Strong cross cylinders provide a superior press force that allows for quick compaction of large volumes of heavy-duty waste.
Fits in tight spaces
The low overall height of just under 79 inches permits the baler to fit in tight spaces that have height restrictions. Easily install the X4830 anywhere you’d like.
X4830 – high capacity baler:
- For many different recyclables
- Low overall height
- High press force
- Very low noise level
- High speed and high effeciency

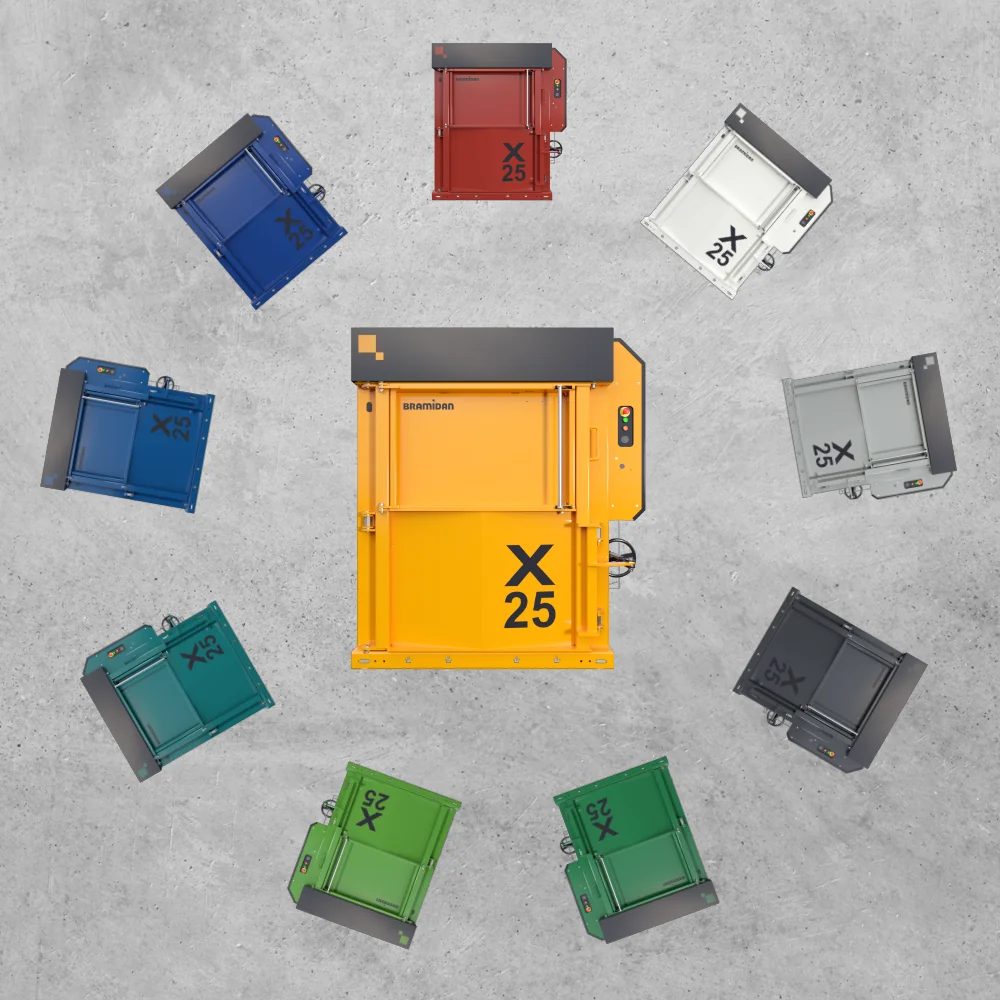

- Powder Coating provides durable finish in many colors
Time-saving and easy waste handling
- Load your recyclables into vertical baler.
- A full-bale light tells you when the baler is full.
- Tie off and eject the compacted bale.
- Remove the bale with a pallet jack for storage untill collection.
| Bale weight cardboard (lbs) | 525-700 |
| Bale weight plastic foil (lbs) | 575-825 |
| Press force (lbs) | 66,000 |
| Power supply | 208/230/480V 3-phase 60Hz |
| Motor (HP) | 5.5 |
| Noise Level (dB) | 59-60 |
| Cycle time avg. (sec) | 28 |
| Dimensions WxDxH (inch) | 69 x 50 x 79 |
| Weight (lbs) | 3,200 |
| Feed opening WxH (inch) | 43 x 21 |
| Load height (inch) | 49 |
| Chamber height (inch) | 54 |
| Stroke (inch) | 37 |
| Number of ties | 4 |
| Type of tying | Twine / Steel wire |
| Full bale light | Yes |
| Bale eject | Automatic |
| Waste volume | Medium |
Monitor & Analyze Your Equipment
Combine our BRA-IN services to fit your needs
The baler model that is best for you depends on the type and volume of material and the amount you generate daily. It also depends on the amount of space you have at your facility.
Using this information, we can determine the proper waste solution for you and your company. Our sales team is happy to work with you to find the best fit for your company’s structure and internal work processes.
Our X-series balers are designed to compact a variety of different heavy-duty waste materials, such as plastic bottles (PET), expandable plastic, aluminium or tin cans, and big bags. They are also very efficient at compacting materials like cardboard, paper, and dry soft plastic (shrink wrap).
Contact a member of our sales team before compacting other types of materials in your baler.
No, our machines are very easy and simple to operate.
To start the automatic press cycle, press a single button and walk away. When the bale is finished, use the turnbuckle to open the lower door. Tying off the bale is very easy with our unique pre-loading system.
Yes, it is possible to bale PET bottles. However, before compacting, the bottles need to be perforated or the lids taken completely off. If not, the trapped air inside of the bottles will cause a looser, less compact bale. PET is one of the most abundant materials. It is found in soda bottles, water bottles, drinking cups, and food containers.
PET bottles can be baled in our X-series model balers. For a tighter and more stable bale, we recommend placing a layer of cardboard on both the top and bottom of the finished bale.
The best place to install your baler depends on your internal work procedure and waste flow. We suggest placing the baler near the waste source to allow for more efficient waste handling.
We are happy to help you find the best location for your machine.
Yes, we do offer custom colors as special orders for an additional fee.
The standard yellow color of our balers is based on a scientific study of the basic human psychology that states yellow captures our attention more than any other color. The Bramidan yellow means that our balers are very easy to see in all types of working environments, which reduces the overall risk for accidents.
