VERTICAL BALER

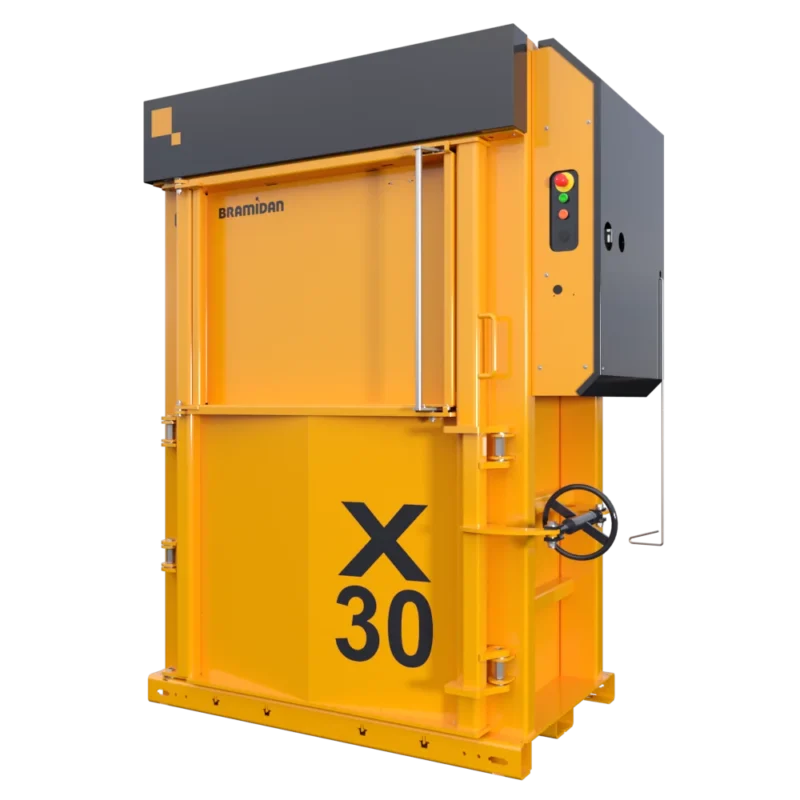

Baler X30 HD

The X30 HD baler is a compact low-profile machine with a high capacity. The superior press force and extra wide feed opening make it ideal for numerous types of waste.
Color
RAL 1007
RAL 3016
RAL 5002
RAL 5017
RAL 5021
RAL 6018
RAL 6032
RAL 7015
RAL 7035
RAL 9003
*Bramidan yellow at no extra cost. Other colors can be ordered at an additional cost.
Add to your quote

VERTICAL BALER

Baler X30 HD
Popular options
Equip your balers with an intelligent modem and get visualized baler location data. Plan the most effective bale collection or service route.
Use BRA-IN to optimize your baler logistics
Add to quote

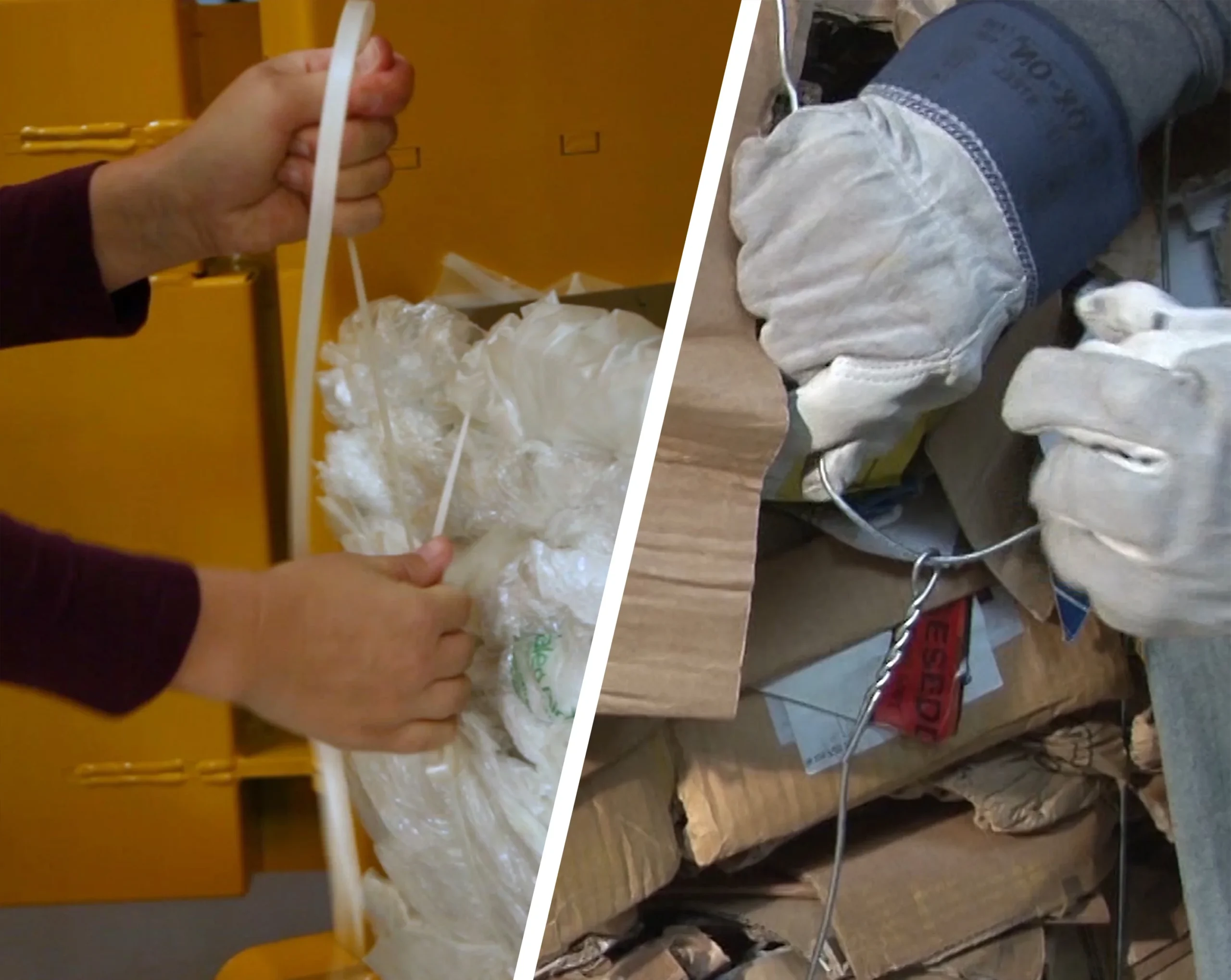

We offer strapping and steel wires for your balers. Contact us and let us guide you to the right choice for your machine and waste material.
Tie your bales with strapping or steel wires
Add to quote

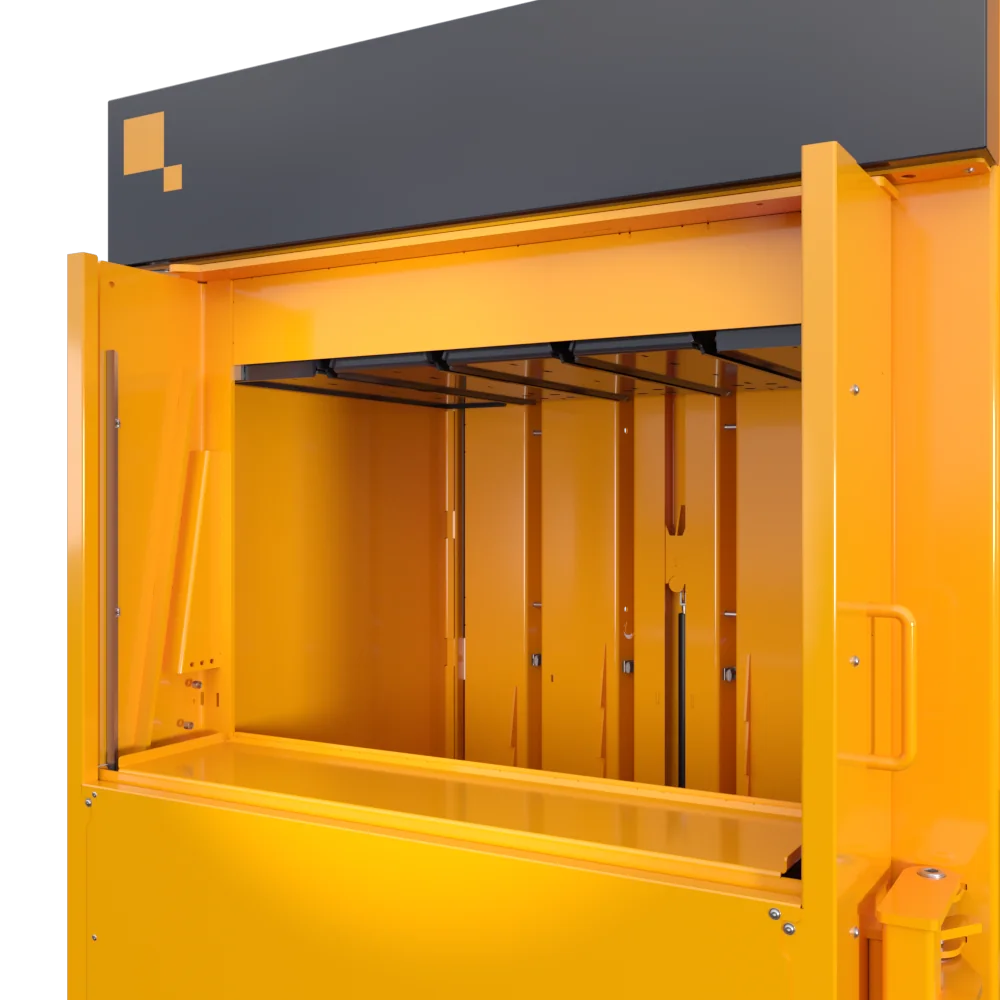

Handle PET bottles easily with the chute inspired Flap Door. The door prevents bottles from falling out when you open the door.
Flap door prevents PET bottle back-run
Add to quote
Galvanize your baler to make it more resistant against residual liquids in your waste materials or a wet environment.
Galvanized baler lets you handle wet materials
Add to quote

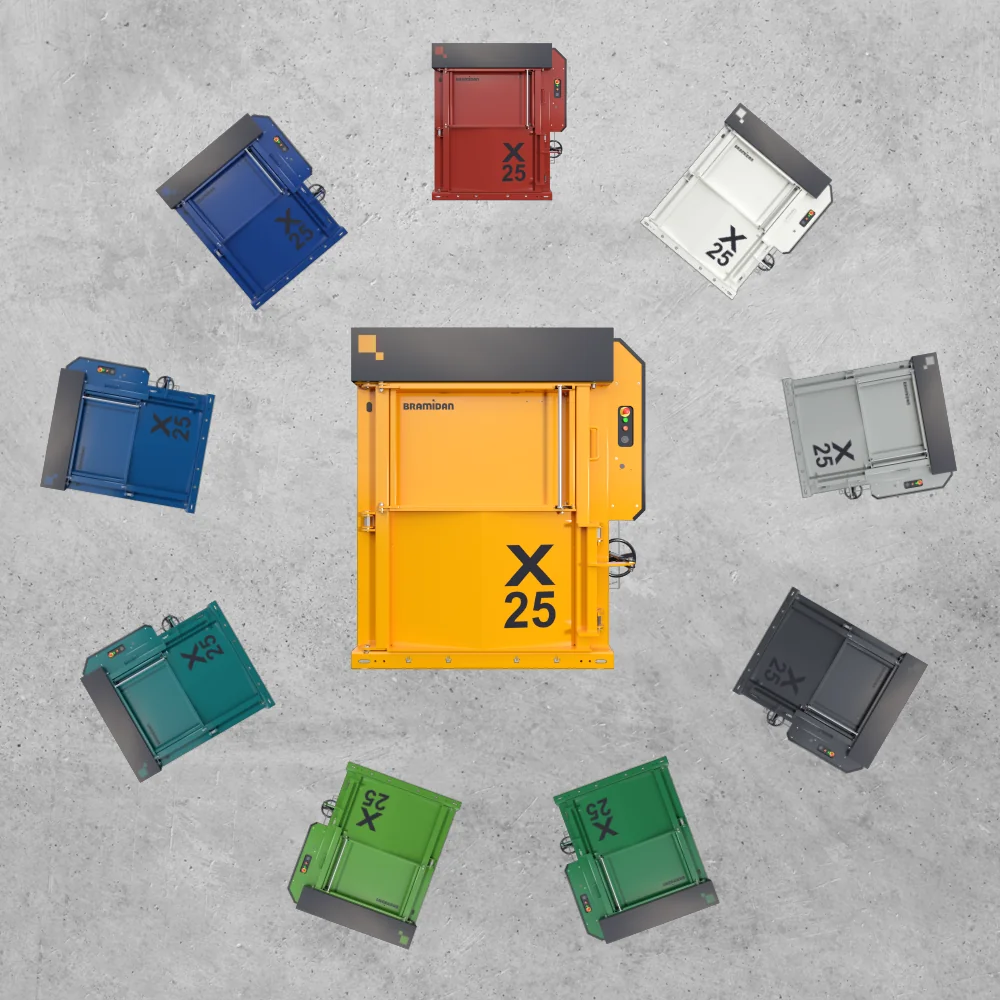

Receive your baler in a custom colour. Available in any RAL colour. Top and side cover, press plate, and spindle stay our standard grey.
Custom coloured baler
Add to quote

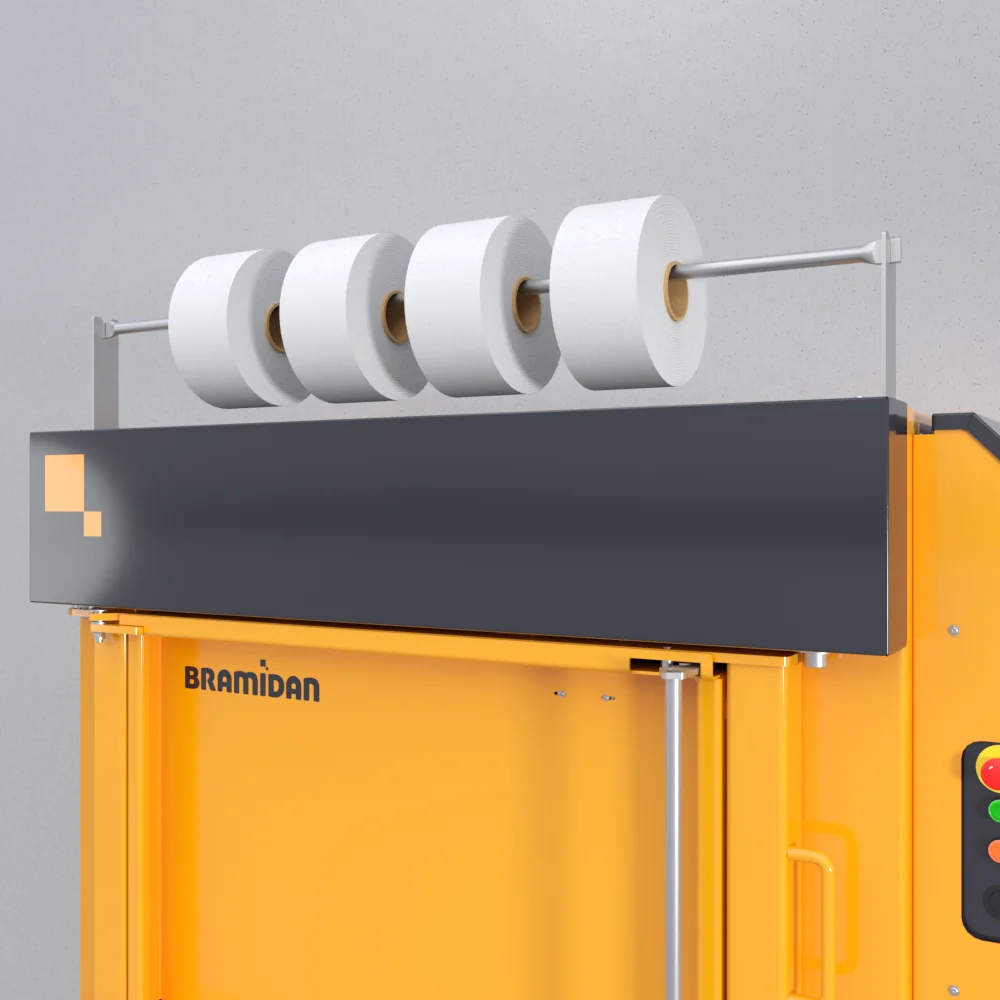

Get a close-to-wall installation of your baler. Have the strap holders installed on the top of the baler instead of behind it.
Push your baler against the wall with top-mounted strap holders
Add to quote

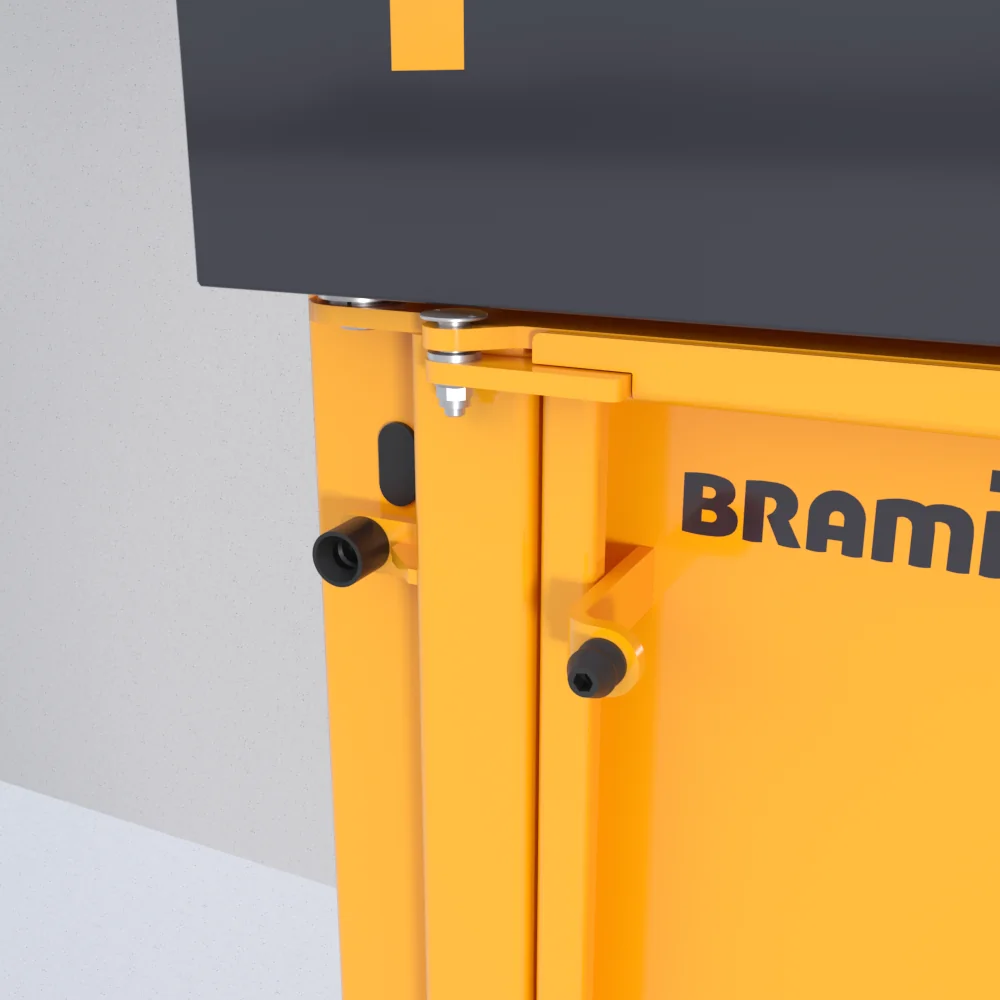

Get unobstructed filling with a fully open door. The door stop keeps the baler door open at 180 degrees.
Keep baler door open with door stop
Add to quote

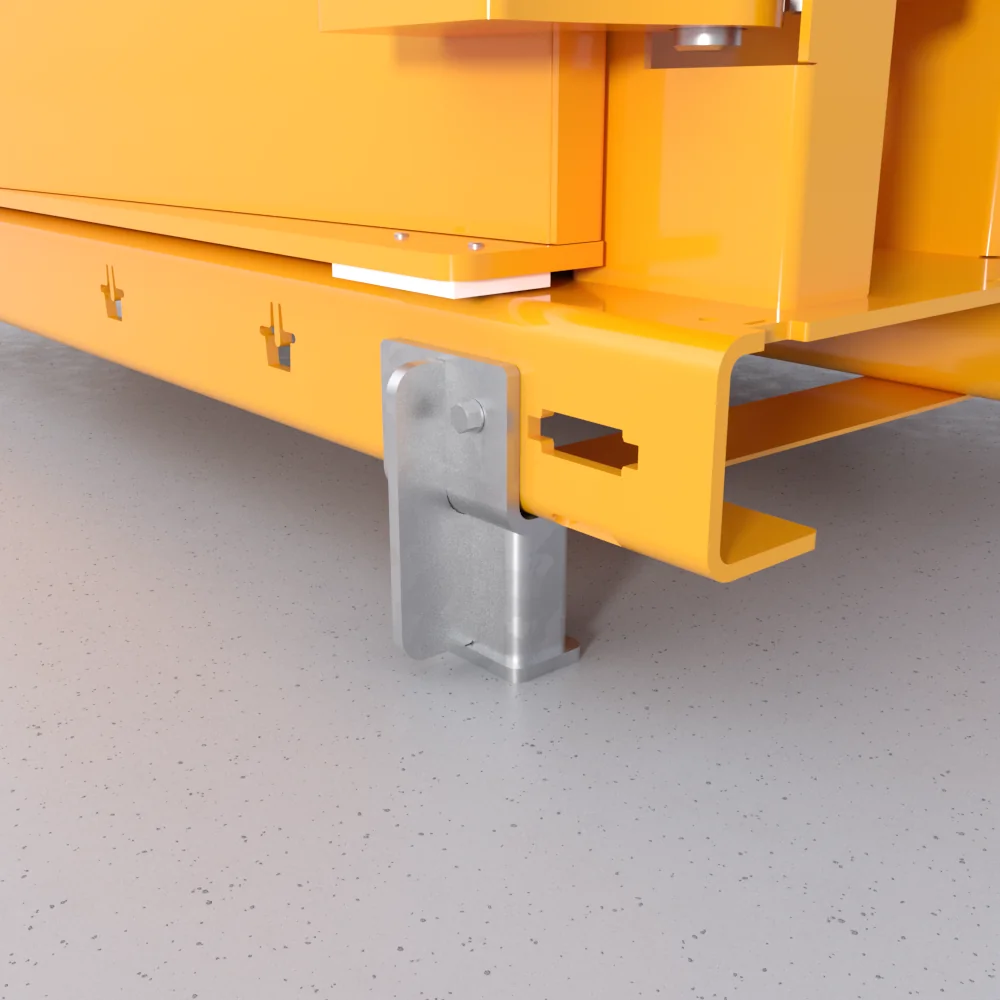

Lift the baler from the ground for easy cleaning underneath or manoeuvring into a narrow space.
Baler feet lift your baler from the ground
Add to quote

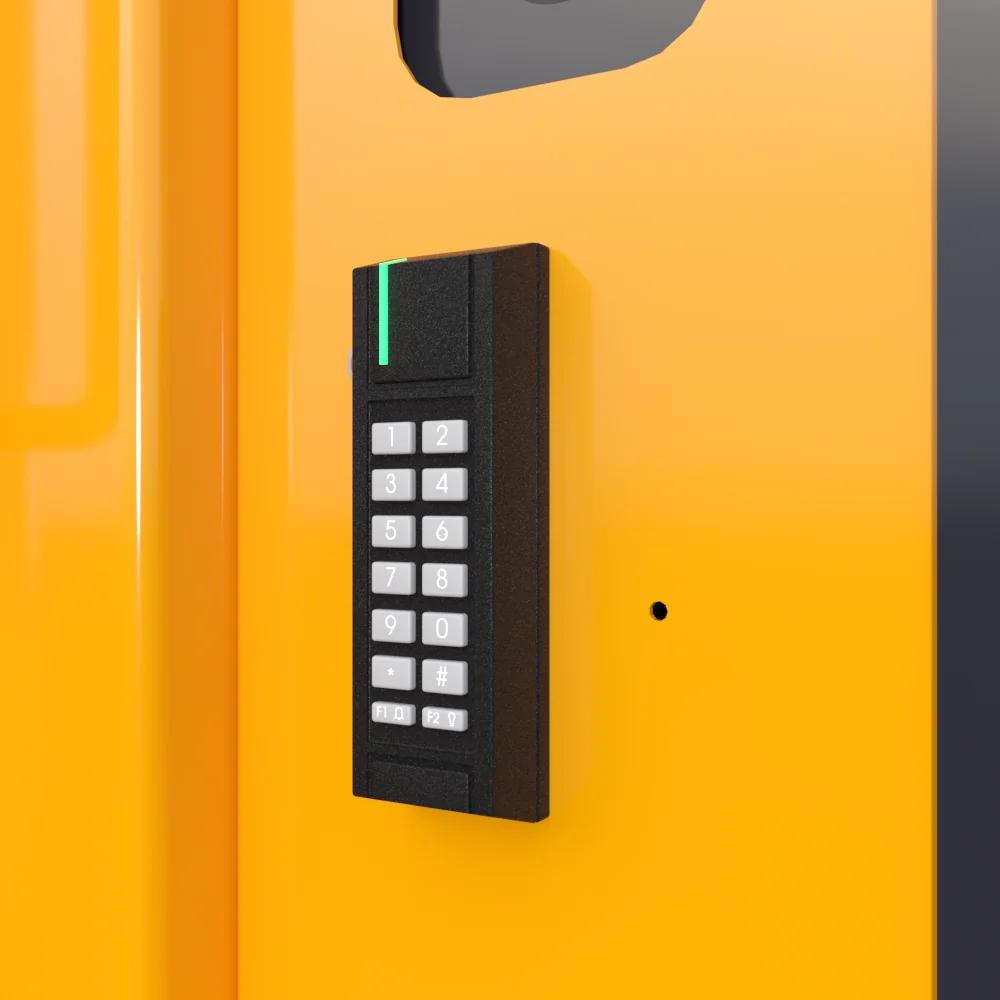

Limit access to operate the baler with an automatic lock. You unlock the baler by using a PIN code or a magnetic key tag.
Auto lock limits access to your baler
Add to quote
Quote details

VERTICAL BALER

Baler X30 HD

    Fill out your details below and we'll get back to you

    Overview
    How to operate
    Safety
    Technical specifications


    Handles irregularly shaped boxes

    The wide feed opening is perfect for irregularly shaped materials that are space consuming, like large cardboard boxes.



    Multi-functional baler

    The X30 HD is a multi-functional baler suited for a variety of different materials including cans, bottles, jugs, big bags, and expandable plastics.

    X30 HD – Superior baler for large quantities of waste:

    • Compacts heavy-duty materials
    • Perfect for most bulky waste
    • Retainer dogs keep material compressed in chamber
    • Maximum compaction of waste
    • Powder Coating provides durable finish in many colors
    How does the X30 HD baler work?

    Time-saving and easy waste handling

    1. Load your recyclables into vertical baler.
    2. A full-bale light tells you when the baler is full.
    3. Tie off and eject the compacted bale.
    4. Remove the bale with a pallet jack for storage untill collection.
    The X30 HD baler is safe and easy to operate
    Our equipment has the highest level of safety – don’t settle with less!
    Bale weight cardboard (lbs)600-775
    Bale weight plastic foil (lbs)775-1,000
    Press force (lbs)66,200
    Power supply208/230/480V 3-phase 60Hz
    Motor (HP)5.5
    Noise Level (dB)59-60
    Cycle time avg. (sec)25
    Dimensions WxDxH (inch)69 x 50 x 91
    Weight (lbs)3,800
    Feed opening WxH (inch)43 x 26
    Load height (inch)45
    Chamber height (inch)66
    Stroke (inch)37
    Number of ties4
    Type of tyingTwine / Steel wire
    Full bale lightYes
    Bale ejectAutomatic
    Waste volumeMedium
    Waste Volume
    Medium
    FEED OPENING
    43 x 26 Inches
    BALE SIZE
    48 x 30 x 48 Inches
    PRESS FORCE
    66,200 lbs
    BALE WEIGHT
    Cardboard:600-775
    Plastic: 775-1,000
    Product Options
    Customize your machine with the perfect product options for your needs
    VERTICAL BALER X30 HD
    Use BRA-IN to optimize your baler logistics
    Equip your balers with an intelligent modem and get visualized baler location data. Plan the most effective bale collection or service route.
    Tie your bales with strapping or steel wires
    We offer strapping and steel wires for your balers. Contact us and let us guide you to the right choice for your machine and waste material.
    Flap door prevents PET bottle back-run
    Handle PET bottles easily with the chute inspired Flap Door. The door prevents bottles from falling out when you open the door.
    Galvanized baler lets you handle wet materials
    Galvanize your baler to make it more resistant against residual liquids in your waste materials or a wet environment.
    Custom coloured baler
    Receive your baler in a custom colour. Available in any RAL colour. Top and side cover, press plate, and spindle stay our standard grey.
    Push your baler against the wall with top-mounted strap holders
    Get a close-to-wall installation of your baler. Have the strap holders installed on the top of the baler instead of behind it.
    Keep baler door open with door stop
    Get unobstructed filling with a fully open door. The door stop keeps the baler door open at 180 degrees.
    Baler feet lift your baler from the ground
    Lift the baler from the ground for easy cleaning underneath or manoeuvring into a narrow space.
    Auto lock limits access to your baler
    Limit access to operate the baler with an automatic lock. You unlock the baler by using a PIN code or a magnetic key tag.

    Monitor & Analyze Your Equipment

    Make the most of your equipment with our intelligent monitoring solution. We call it BRA-IN, Bramidan Intelligence. With BRA-IN you can make faster and better decisions, reducing your costs of operation while minimizing your impact on the environment.
    In our business BRA-IN is short for Bramidan Intelligence, and a collective name for our special developed IOT system. This links all connected compaction equipment with IT systems, providing you with a 360 degree view of your equipment minimizing direct and indirect waste handling costs over time.

    Combine our BRA-IN services to fit your needs

    Remarkably Low Noise Level
    Most balers run at around 70-80 dB. At that level they can be harmful. People do not think to wear ear protection while running a baler, and with our baler you never have to, as we have mitigated the noise.
    Many people miss the significance of the low noise levels you get when choosing a Bramidan baler. With the prevalence of earbuds and other devices in our ears most of the time in our leisure, hearing loss is a serious threat. What most people don’t understand about decibels is that their calculation is at a ratio. So the difference between 1 decibel and 10 is a lot in sound comparison.

    30dB
    50dB
    75dB
    100dB
    160dB
    X30
    59-60 dB
    Whisper
    Fridge
    Other Balers
    Cars on motorway
    Jet engine


    FAQ
    VERTICAL BALER X30 HD
    Most Common Questions & Answers
    Welcome to our FAQ section, designed to provide quick answers to questions you might have.
    If you need further assistance, don’t hesitate to contact us directly. Your queries matter to us, and we’re here to help!
    How does a baler work?

    A vertical baler is a machine that reduces the overall volume of your loose waste material by making a compact and tight bundle called a bale.

    Using the filling opening, you can easily toss your loose cardboard or soft plastic into the baler. A press plate uses extreme force to compress the material by pushing downward. The material remains compacted due to the retainer dogs inside of the chamber of the baler.

    Continue to throw material into the baler until you have compacted enough waste for a full bale. Then, the finished bale is manually tied off with polyblend strapping or wire. The size and weight of the finished bale are determined by the size of your baler.

    The finished bales take up a limited amount of space and are easy to move. Baling your waste material offers you an easy solution for waste disposal.

    Bramidan offers a variety of different baler designs that are perfect for handling your waste.

    Our specialists are ready to advise you on the type of baler that will best suit the needs of your business. Please contact a member of our team for further information.

    What’s the difference between the B-series and the X-series balers?

    Our B series machines all share the classic design with exterior cylinders. These machines were created specifically for baling cardboard, paper, and dry soft plastic (shrink wrap).

    Our X series balers are our heavy-duty low-profile machines with interior cross cylinders. These machines were designed to handle various types of bulky waste materials. The X series balers provide a quiet working environment with the lowest noise level on the market.

    What kind of monitoring technology do your machines have?

    All of our balers are equipped with BRA-IN technology. BRA-IN is a web portal for intelligent fleet monitoring. Using a modem, machine data is collected.

    With BRA-IN you can:

    • Control your entire fleet of machines
    • Receive a text message or email when there is a full bale
    • Advise your recycler directly when a bale is ready for pickup
    • Track the number of bales made over time
    • Save time and money with remote service and troubleshooting
    • Calculate the total cost of ownership
    Can I compact PET bottles?

    Yes, it is possible to bale PET bottles. However, before compacting, the bottles need to be perforated or the lids taken completely off. If not, the trapped air inside of the bottles will cause a looser, less compact bale. PET is one of the most abundant materials. It is found in soda bottles, water bottles, drinking cups, and food containers.

    PET bottles can be baled in our X-series model balers. For a tighter and more stable bale, we recommend placing a layer of cardboard on both the top and bottom of the finished bale.

    Do you have a compaction solution for recyclables that contain residual liquid?

    Yes, we supply a draining add-on for select models. With this solution, you will be able to bale waste materials that contain liquids, such as aluminum cans and PET bottles.

    To prevent splashing, our draining system also includes a seal for the bottom door.

    Can I get a baler with a door that doesn’t open outwards?

    We offer a door solution that does not swing outwards. To allow more direct access to the chamber from all sides and provide more space around the baler, we have designed a manual vertical door that opens upwards on our B-series machines.

    This door option is designed for sites with a narrow, limited amount of space.

    Did you find an answer to your questions? If not visit our FAQ universe.
