VERTICAL BALER

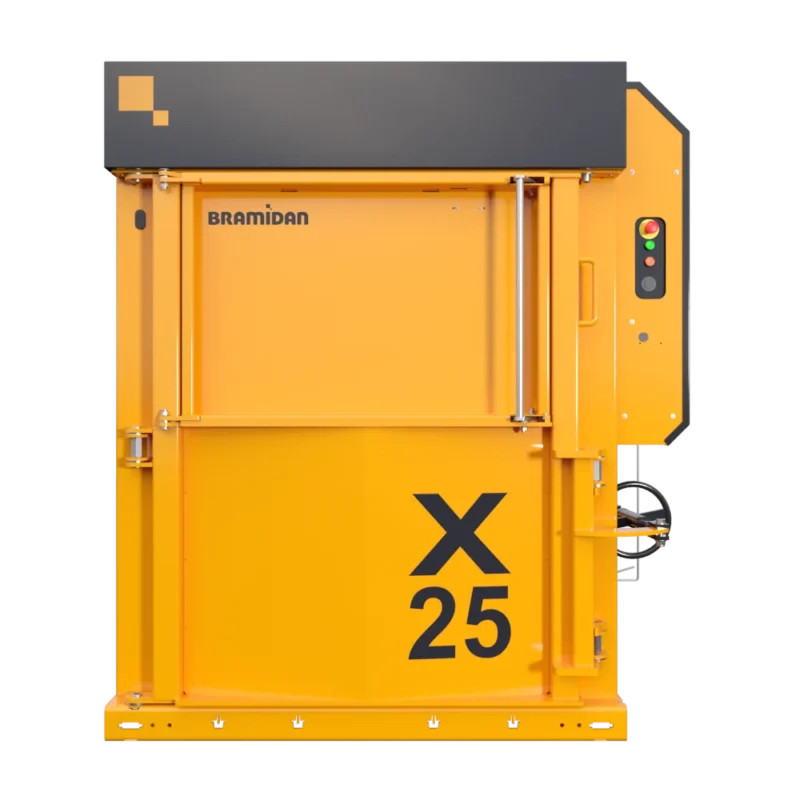

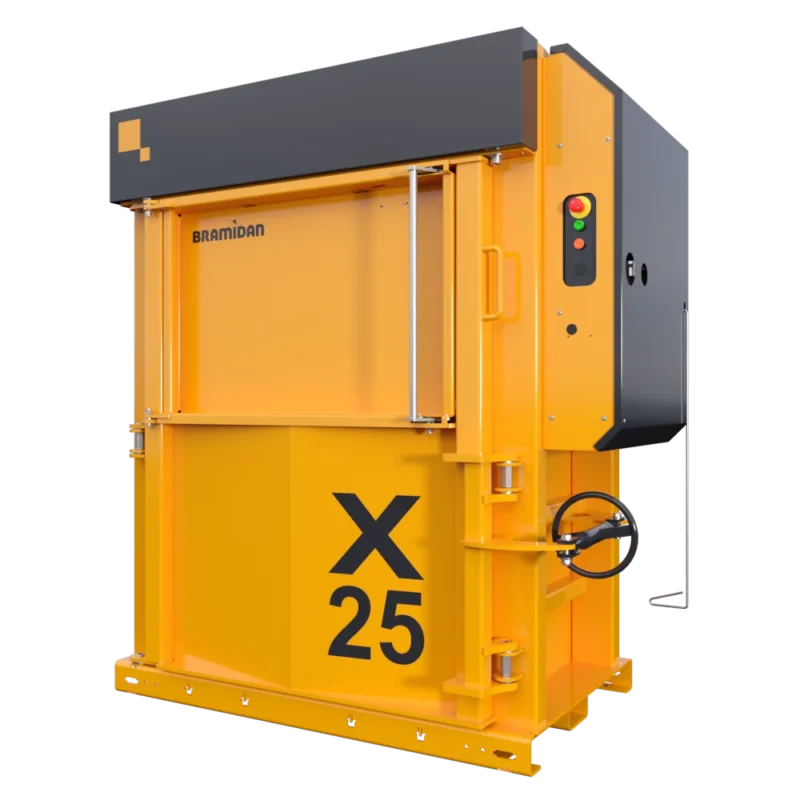

Baler X25 HD

The superior press force paired with specially designed internal cross cylinders allow for stable compaction of material with a heavy bale weight.
Color
RAL 1007
RAL 3016
RAL 5002
RAL 5017
RAL 5021
RAL 6018
RAL 6032
RAL 7015
RAL 7035
RAL 9003
*Bramidan yellow at no extra cost. Other colors can be ordered at an additional cost.
Add to your quote

VERTICAL BALER

Baler X25 HD
Popular options
Gain remote access to your baler with our intelligent fleet monitoring system, BRA-IN. You see balers full, service status, number of collections etc. and optimize your Total Cost of Ownership.
BRA-IN lets you monitor your balers intelligently
Add to quote
We offer strapping and steel wires for your balers. Contact us and let us guide you to the right choice for your machine and waste material.
Tie your bales with strapping or steel wires
Add to quote

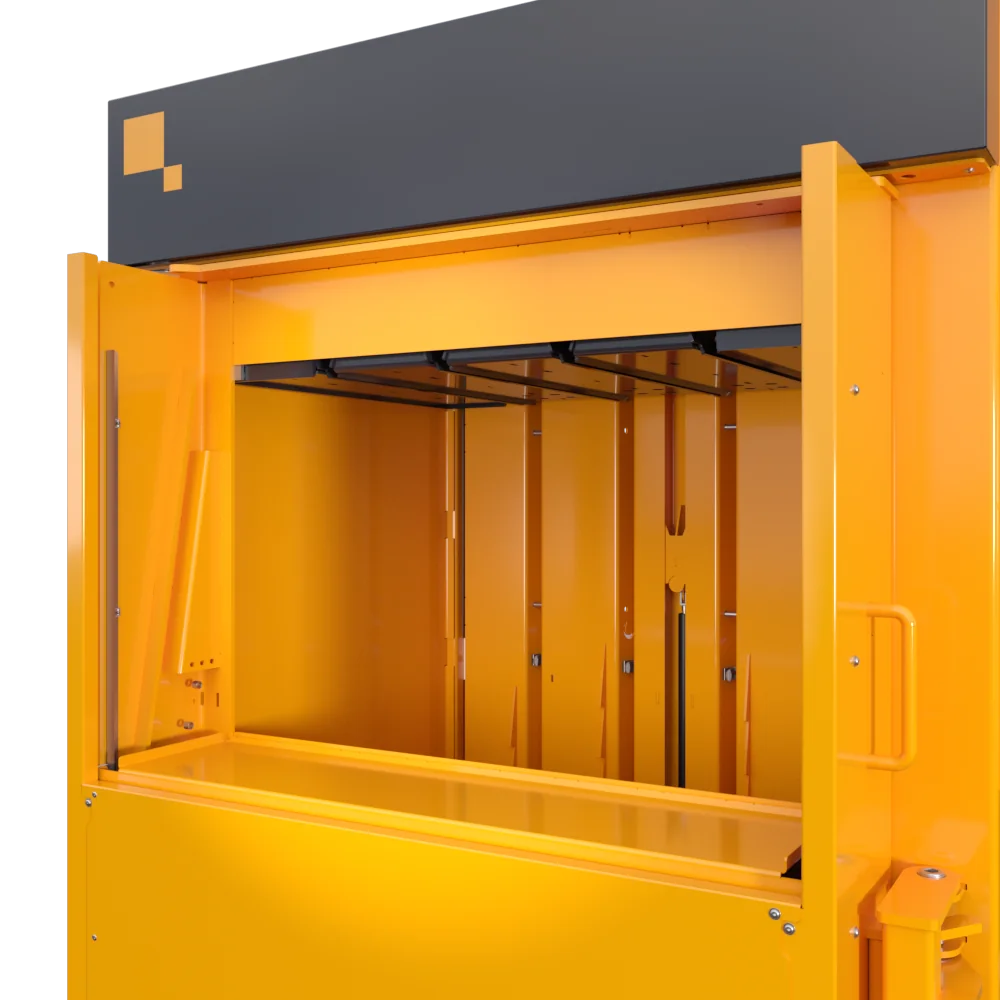

Avoid waste back-run when the door is opened. A flap door works like a chute and is suitable for cans and PET bottles.
Flap Door for baler lets you handle bottles and cans easily
Add to quote

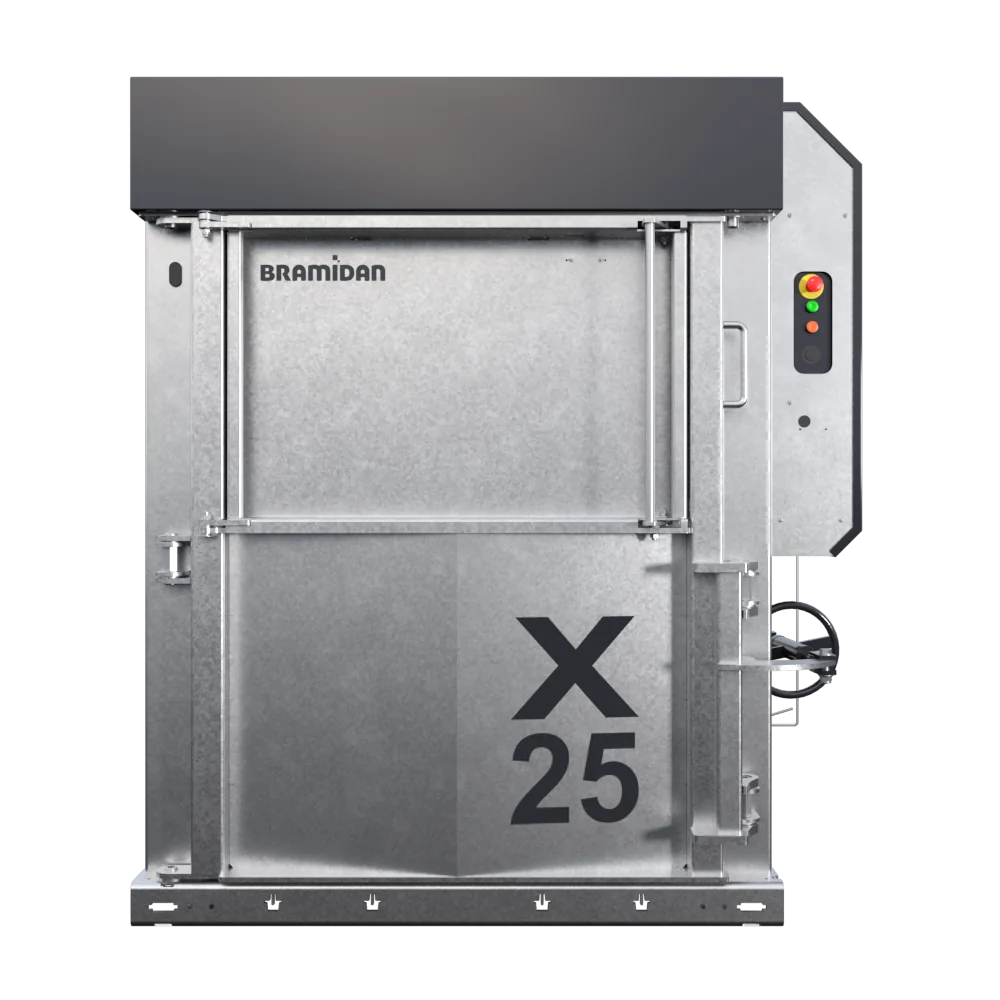

Make your baler more resistant with a galvanized surface. The galvanized surface is suitable for challenging waste or wet environments.
Galvanized surface makes your baler environment resistant
Add to quote

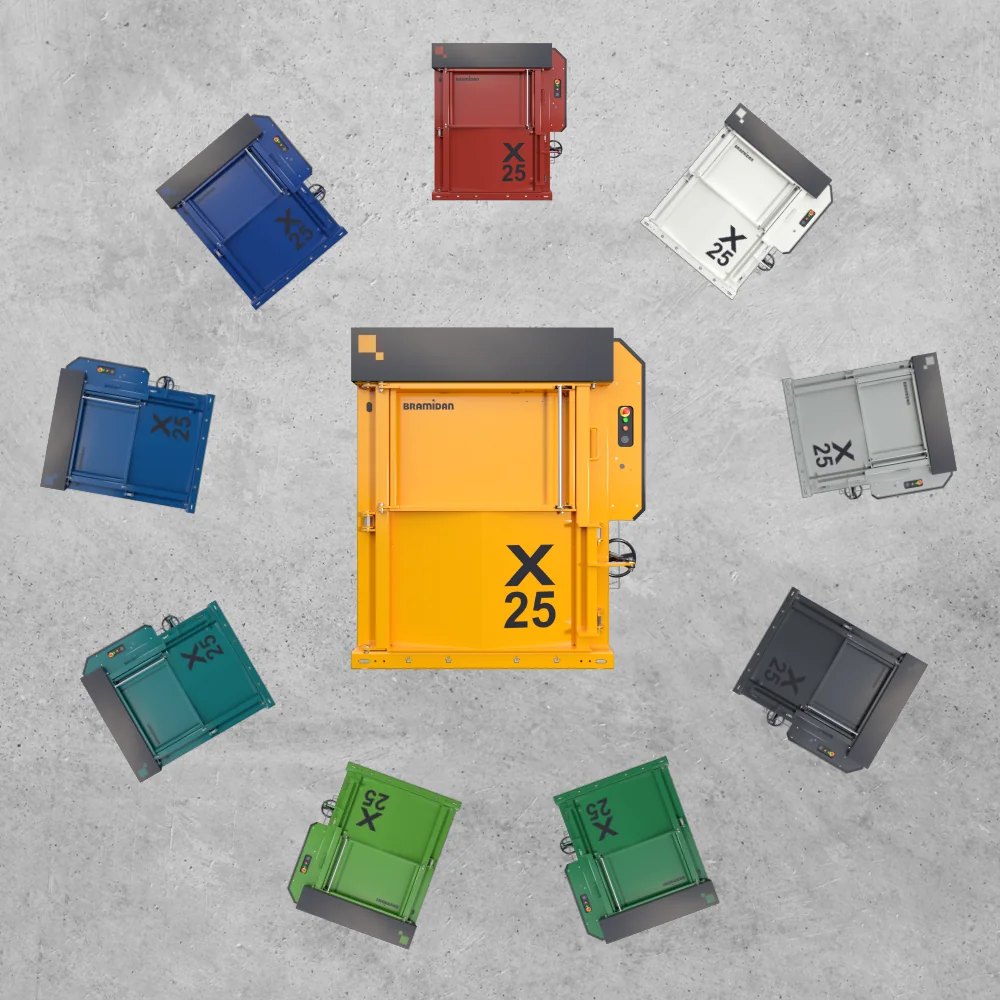

Have your baler painted in a RAL colour of your choice. Machine hood, press plate, and spindle are exempted from custom colouring.
Personalize your baler with custom colour
Add to quote

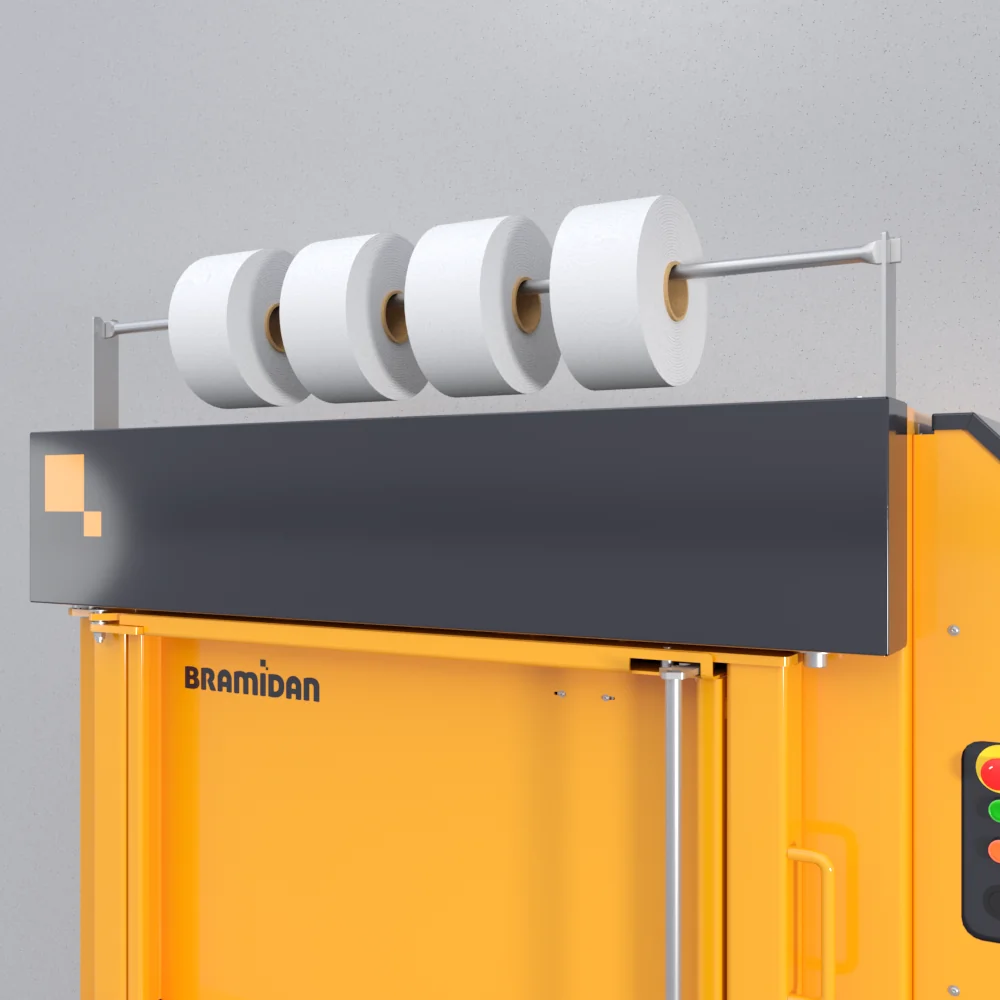

Move strap holders from the back of the machine to the top and eliminate having to go behind the baler to prepare baler straps.
Strap holders on machine top eliminate going behind baler
Add to quote

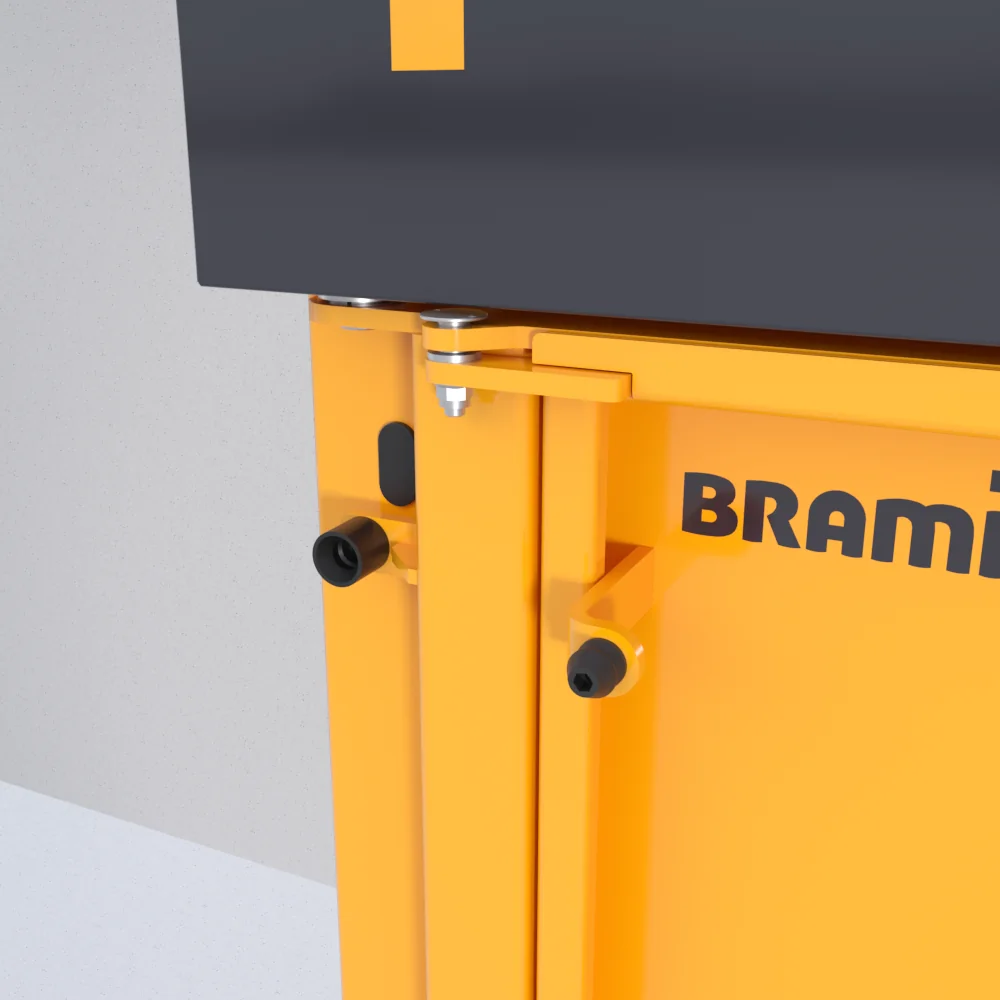

Keep the door open in a fixed position of 180 degrees with a door stop.
Door stop holds the door for you
Add to quote

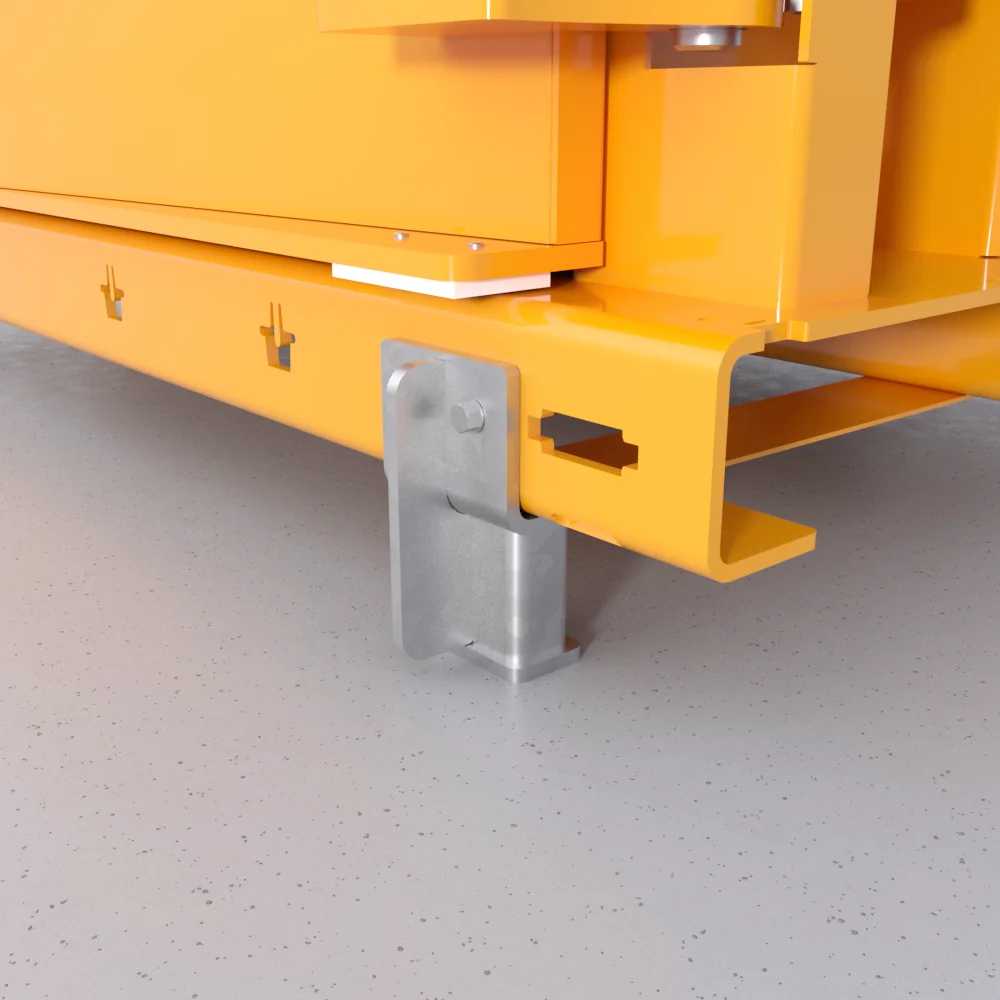

Lift the baler from the ground for easy cleaning underneath or manoeuvring into a narrow space.
Baler feet lift your baler from the ground
Add to quote

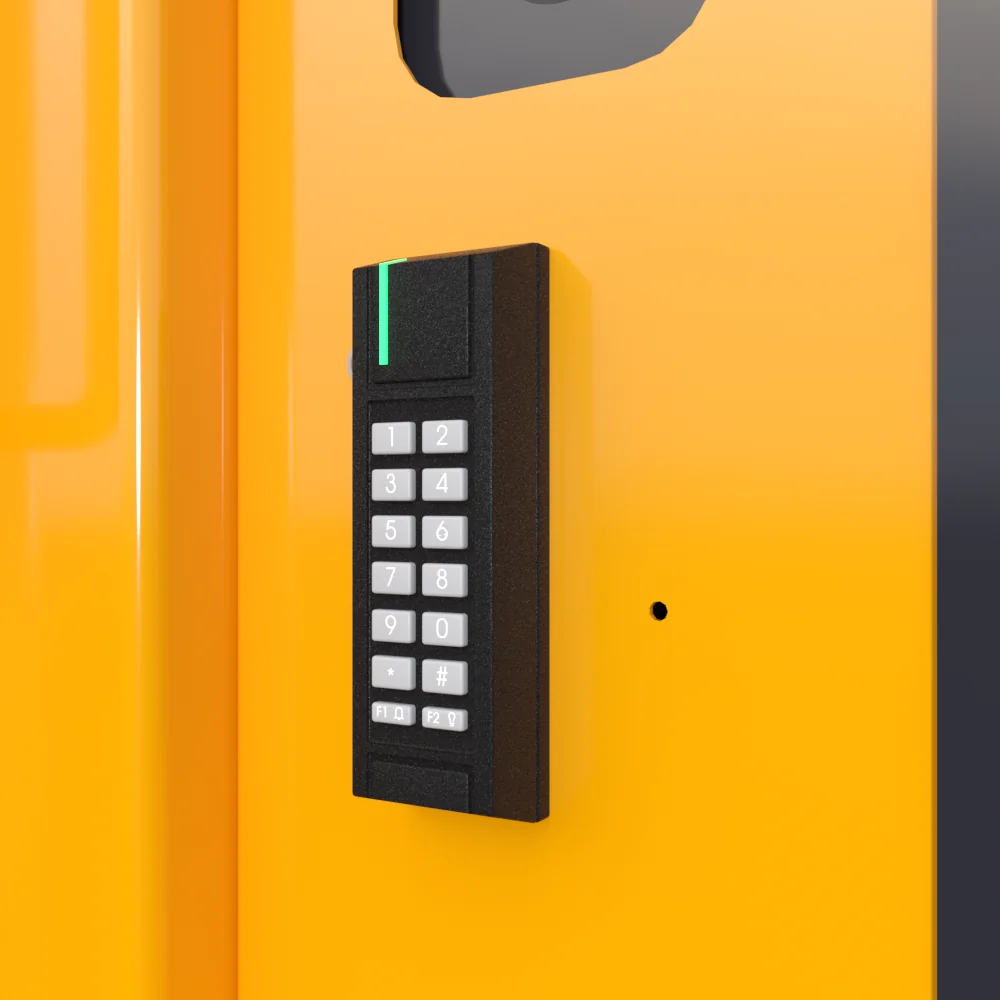

Enable baler loading but restrict access to run press cycles. Permission to run a press cycle is granted with a personal code or a key tag.
Restrict who can use your baler with an auto lock
Add to quote
Quote details

VERTICAL BALER

Baler X25 HD

    Fill out your details below and we'll get back to you

    Overview
    How to operate
    Safety
    Technical specifications


    Optimized for locations with space restrictions

    Fits in tight spaces with low ceilings. Very low height due to the cylinders being placed inside the machine.

    Very heavy bale weight

    The long stroke and exceptional press force allow the X25 HD to produce heavy bales.

    X25 HD – Heavy-duty baler for waste compaction:

    • Handles diverse types of materials
    • High volume chamber
    • Retainer dogs prevent material from expanding
    • Efficient and fast cycle time
    • No openings or moving parts on outside of machine
    • Low overall height
    • Powder Coating provides durable finish in many colors
    How does X25 baler works?

    Time-saving and easy waste handling

    1. Load your recyclables into vertical baler.
    2. A full-bale light tells you when the baler is full.
    3. Tie off and eject the compacted bale.
    4. Remove the bale with a pallet jack for storage untill collection.
    The X25 HD baler is safe and easy to operate:
    Our equipment has the highest level of safety – don’t settle with less!
    Bale weight cardboard (lbs)500-650
    Bale weight plastic foil (lbs)550-775
    Press force (lbs)55,200
    Power supply208/230/480V 3-phase 60Hz
    Motor (HP)5.5
    Noise Level (dB)59-60
    Cycle time avg. (sec)23
    Dimensions WxDxH (inch)69 x 50 x 79
    Weight (lbs)3,150
    Feed opening WxH (inch)43 x 21
    Load height (inch)38
    Chamber height (inch)54
    Stroke (inch)37
    Number of ties4
    Type of tyingTwine / Steel wire
    Full bale lightYes
    Bale ejectAutomatic
    Waste volumeMedium
    Waste Volume
    Medium
    FEED OPENING
    43 x 21 Inches
    BALE SIZE
    48 x 30 x 30 Inches
    PRESS FORCE
    55,200 lbs
    BALE WEIGHT
    Cardboard:500-650
    Plastic: 550-775
    Product Options
    Customize your machine with the perfect product options for your needs
    VERTICAL BALER X25 HD
    BRA-IN lets you monitor your balers intelligently
    Gain remote access to your baler with our intelligent fleet monitoring system, BRA-IN. You see balers full, service status, number of collections etc. and optimize your Total Cost of Ownership.
    Tie your bales with strapping or steel wires
    We offer strapping and steel wires for your balers. Contact us and let us guide you to the right choice for your machine and waste material.
    Flap Door for baler lets you handle bottles and cans easily
    Avoid waste back-run when the door is opened. A flap door works like a chute and is suitable for cans and PET bottles.
    Galvanized surface makes your baler environment resistant
    Make your baler more resistant with a galvanized surface. The galvanized surface is suitable for challenging waste or wet environments.
    Personalize your baler with custom colour
    Have your baler painted in a RAL colour of your choice. Machine hood, press plate, and spindle are exempted from custom colouring.
    Strap holders on machine top eliminate going behind baler
    Move strap holders from the back of the machine to the top and eliminate having to go behind the baler to prepare baler straps.
    Door stop holds the door for you
    Keep the door open in a fixed position of 180 degrees with a door stop.
    Baler feet lift your baler from the ground
    Lift the baler from the ground for easy cleaning underneath or manoeuvring into a narrow space.
    Restrict who can use your baler with an auto lock
    Enable baler loading but restrict access to run press cycles. Permission to run a press cycle is granted with a personal code or a key tag.

    Monitor & Analyze Your Equipment

    Make the most of your equipment with our intelligent monitoring solution. We call it BRA-IN, Bramidan Intelligence. With BRA-IN you can make faster and better decisions, reducing your costs of operation while minimizing your impact on the environment.
    In our business BRA-IN is short for Bramidan Intelligence, and a collective name for our special developed IOT system. This links all connected compaction equipment with IT systems, providing you with a 360 degree view of your equipment minimizing direct and indirect waste handling costs over time.

    Combine our BRA-IN services to fit your needs

    Remarkably Low Noise Level
    Most balers run at around 70-80 dB. At that level they can be harmful. People do not think to wear ear protection while running a baler, and with our baler you never have to, as we have mitigated the noise.
    Many people miss the significance of the low noise levels you get when choosing a Bramidan baler. With the prevalence of earbuds and other devices in our ears most of the time in our leisure, hearing loss is a serious threat. What most people don’t understand about decibels is that their calculation is at a ratio. So the difference between 1 decibel and 10 is a lot in sound comparison.

    30dB
    50dB
    75dB
    100dB
    160dB
    X25
    59-60 dB
    Whisper
    Fridge
    Other Balers
    Cars on motorway
    Jet engine


    FAQ
    VERTICAL BALER X25 HD
    Most Common Questions & Answers
    Welcome to our FAQ section, designed to provide quick answers to questions you might have.
    If you need further assistance, don’t hesitate to contact us directly. Your queries matter to us, and we’re here to help!
    Can your machine weigh the bales for me?

    No, our balers do not have a built-in scale. However, the bale size and weight do not fluctuate by much and will usually be the same.

    Our BRA-IN monitoring solution allows you to view the average weight and number of bales made in your baler each week and/or month. You can also create reports for recycling compliance.

    How much noise does a baler make?

    All of our balers are usually very quiet and can be placed in a variety of work environments without causing a disturbance.

    Our B-series vertical balers have a very low noise level that never exceeds 57 – 68 decibels. The noise is comparable to that of a vacuum cleaner or air conditioning system.

    Our X-series vertical balers have an even lower noise level that does not exceed 59 decibels. The noise is equivalent to conversational speech.

    Do you do rentals?
    If you aren’t ready to invest in a baler, we offer both rental and leasing options. Please contact a member of our sales team for more information on renting and leasing a machine.
    Do I have to tie the bales myself?
    Yes, our balers require manual tying. However, it is very easy and quick to tie a finished bale with our unique tying system.
    What is the difference between a vertical baler and a horizontal baler?

    The main difference between the two baler types is the direction of their press stroke.

    Vertical balers compress waste materials with a vertical downward force. Waste materials are thrown into a chamber and a press plate moves from the top of the chamber towards the bottom. When a cardboard bale or plastic bale has been made, it is tipped out of the vertical chamber onto a pallet.

    Horizontal balers process waste differently than vertical balers. Recyclable waste is thrown into a hopper, and a platen from the side compresses the material with a horizontal force until a bale is complete. The bale is then tied off with wires and pushed out of the machine on two guide rails.

    With regard to waste types and volumes handled in vertical balers vs. horizontal balers, they can process many of the same waste materials. Horizontal balers can compact larger bales and a higher volume per day than vertical balers. Furthermore, horizontal balers can be used with in-ground or above-ground conveyor belts, shredders, and air systems. Such applications provide convenience for the consumer and often require less manpower to operate.

    But vertical balers take up far less space than horizontal balers, which allows them to be easily used in wider variety of applications than horizontal balers.

    When choosing the proper baler, there are several questions to answer. Contact our specialists – they are ready to help you find the type of baler that will best suit the needs of your individual business.

    How do I know when the baler is full?

    When the baler is full, the orange full-bale indicator light located under the start button will blink. The press plate will also stay in the down position. This prevents the chamber from being overfilled.

    We also offer our BRA-IN monitoring solution, which automatically updates you when your machine is full. You will receive a text or email when the bale is finished, telling you it is time to tie off and eject. Our monitoring solution also allows you to notify your recycler or hauler when an agreed upon number of bales are ready for pickup. Learn more about BRA-IN Bramidan Intelligent Monitoring Solution.
