HORIZONTAL BALER

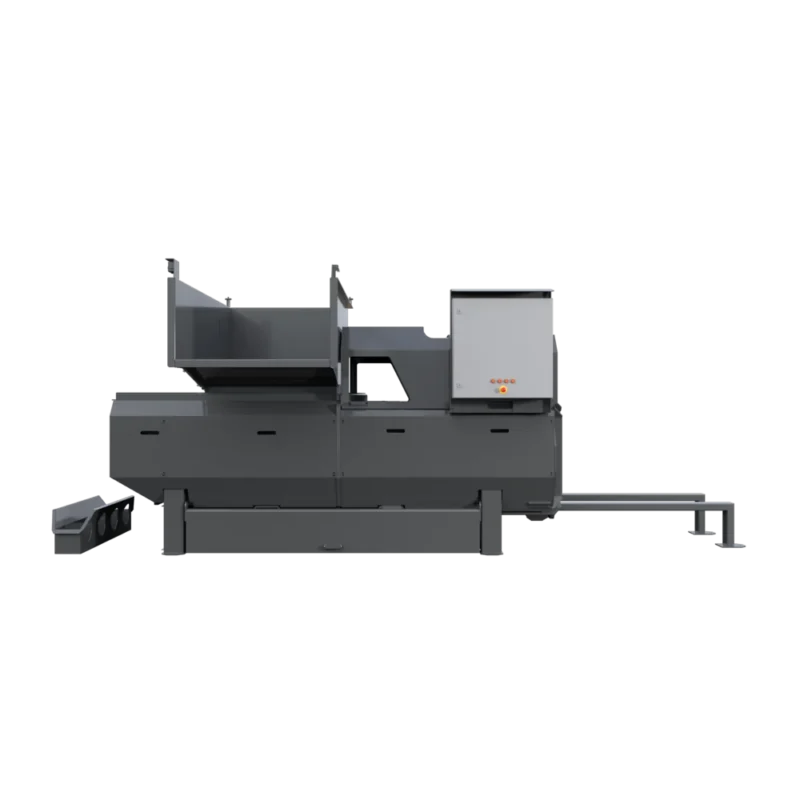

CC40 Auto-Tie Baler

Compact large waste volumes in this easy-to-use horizontal channel baler without sacrificing dependability.
Add to your quote

HORIZONTAL BALER

CC40 Auto-Tie Baler
Popular options

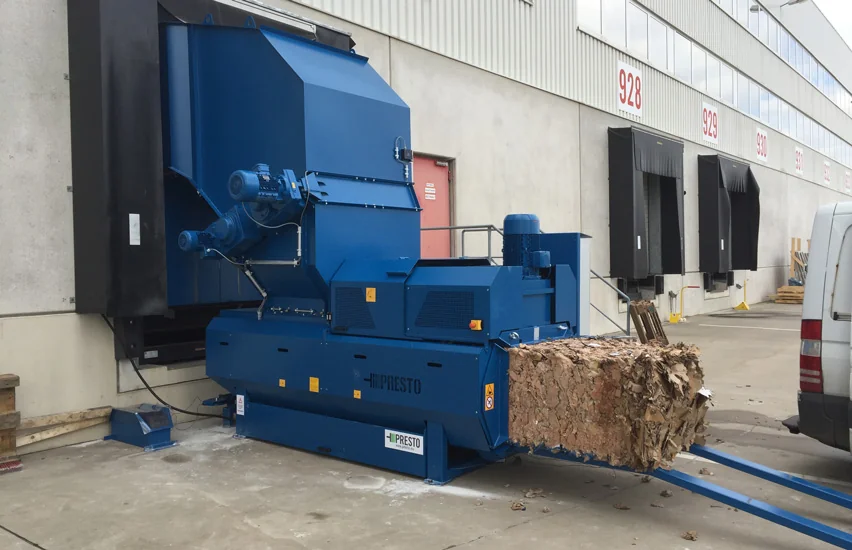

A wall hopper allows you to handle waste more efficiently by eliminating the need to step outside. You can dispose of your waste quickly by tossing it through the wall and directly into the baler.
Continuously fill baler with through the wall hopper
Add to quote

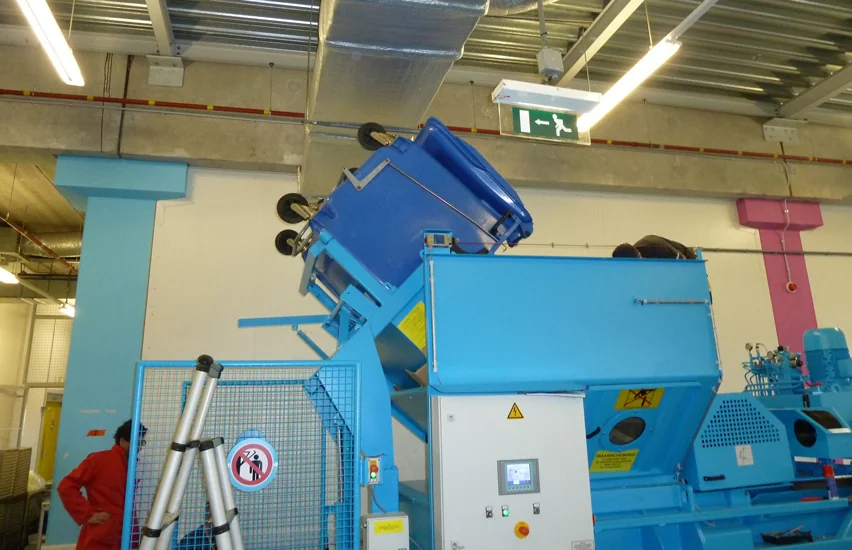

Empty your waste directly into your horizontal baler using a tipping system. Available in an integrated, stationary or movable version.
Tipping system is perfect solution for easily emptying waste
Add to quote
Quote details

HORIZONTAL BALER

CC40 Auto-Tie Baler

    Fill out your details below and we'll get back to you

    Overview
    How to operate
    Safety
    Technical specifications


    Compact solution requires minimal floor space

    A small footprint means the baler can be installed where you need it most, giving you several options for loading.



    User friendly design tailored to your specific needs

    The CC model baler is fully automatic and equipped to handle high volumes of various waste types.

    Horizontal balers CC40 – small footprint:

    • Auto-tie bales
    • Smallest footprint in the market
    • Very economical solution
    • Very low noise level
    • Continuous filling
    • Adjustable bale size
    • Extra wide opening for filling
    • Smart monitoring built-in
    How does the horizontal CC40 baler work?

    Continuous filling of waste with efficient work flow

    1. Toss your cardboard or plastic waste into the hopper.
    2. The press cycle is started by an automatic light barrier.
    3. Bales are automatically tied and pushed out of the channel.
    4. Use a pallet jack to remove the finished bales.
    The CC40 horizontal baler is safe and easy to operate
    Our equipment has the highest level of safety – don’t settle with less!
    Bale weight cardboard (lbs)950-1,100
    Bale weight plastic foil (lbs)1,100-1,300
    Press force (lbs)89,000
    Waste volumeMedium / Large
    Waste types
    Waste Volume
    Medium Large
    BALE SIZE
    60 x 30 x 45 Inches
    PRESS FORCE
    89,000 lbs
    BALE WEIGHT
    Cardboard:950-1,100
    Plastic: 1,100-1,300
    Product Options
    Customize your machine with the perfect product options for your needs
    HORIZONTAL BALER CC40
    Continuously fill baler with through the wall hopper
    A wall hopper allows you to handle waste more efficiently by eliminating the need to step outside. You can dispose of your waste quickly by tossing it through the wall and directly into the baler.
    Tipping system is perfect solution for easily emptying waste
    Empty your waste directly into your horizontal baler using a tipping system. Available in an integrated, stationary or movable version.

    Monitor & Analyze Your Equipment

    Make the most of your equipment with our intelligent monitoring solution. We call it BRA-IN, Bramidan Intelligence. With BRA-IN you can make faster and better decisions, reducing your costs of operation while minimizing your impact on the environment.
    In our business BRA-IN is short for Bramidan Intelligence, and a collective name for our special developed IOT system. This links all connected compaction equipment with IT systems, providing you with a 360 degree view of your equipment minimizing direct and indirect waste handling costs over time.

    Combine our BRA-IN services to fit your needs

    FAQ
    HORIZONTAL BALER CC40
    Most Common Questions & Answers
    Welcome to our FAQ section, designed to provide quick answers to questions you might have.
    If you need further assistance, don’t hesitate to contact us directly. Your queries matter to us, and we’re here to help!
    What can I compress in a horizontal baler?
    A horizontal baler can be used to compress soft materials such as cardboard, paper, and shredded PET.
    How large are the bales produced in a horizontal baler?

    The size of the bales depends on the channel baler. Have look at the product specifications here. Bale weights vary depending on channel baler model and material. Expect bale weights between 440 and 660 lbs in the smallest model and 770 and 990 lbs in the largest model.

    In general, plastic gives the heaviest bales and cardboard and paper the lightest bales.

    Where should I install the horizontal baler?

    The horizontal baler can be placed both indoors and outdoors. The machine requires a solid foundation e.g. concrete or pavement that can support the weight.

    If you place the baler outside, we recommend that you place it under a roof to protect it from wear and tear.

    Our sales consultant will help you identify the best place to install your baler.

    How do I fill my waste material into the horizontal baler?

    We offer a variety of filling options for our horizontal balers depending on your needs, like filling from both sides, from the back, and from the top. Both manual filling and automatic filling is possible.

    Please consult with our sales team to learn about the filling options.

    What is the cycle time of a horizontal baler?
    The cycle time is the time from the press starts till it has returned into position again, and you can continue fill in more waste. The cycle time depends on the machine type and can be as short as 24 secs.
    How is the finished bale tied off in a horizontal channel baler?
    All horizontal channel balers have automatic bale tying and bale length can be adjusted to your needs and preferences.
    Did you find an answer to your questions? If not visit our FAQ universe.
