VERTICAL BALER

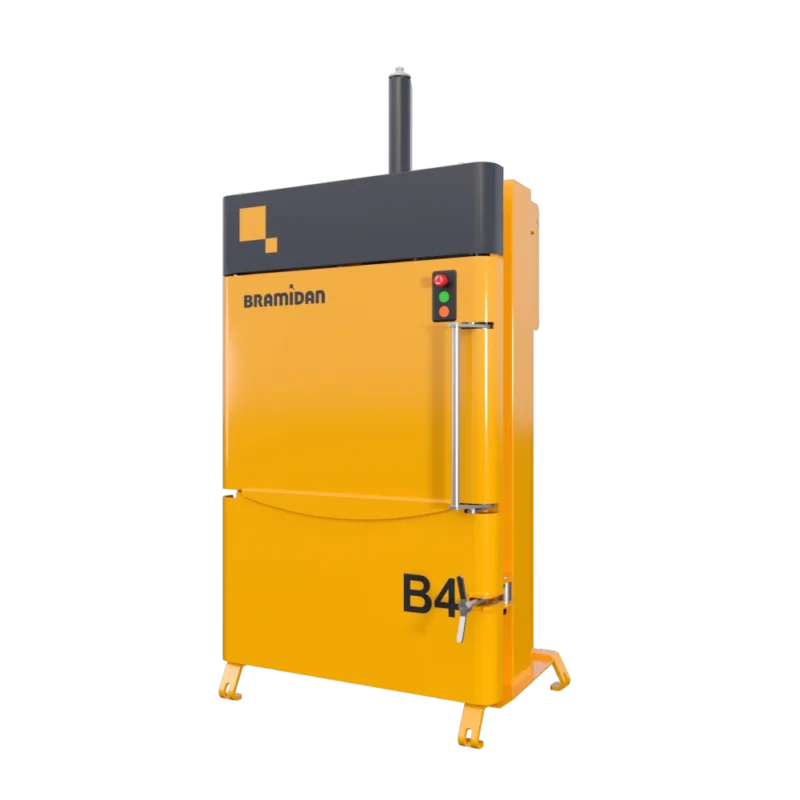

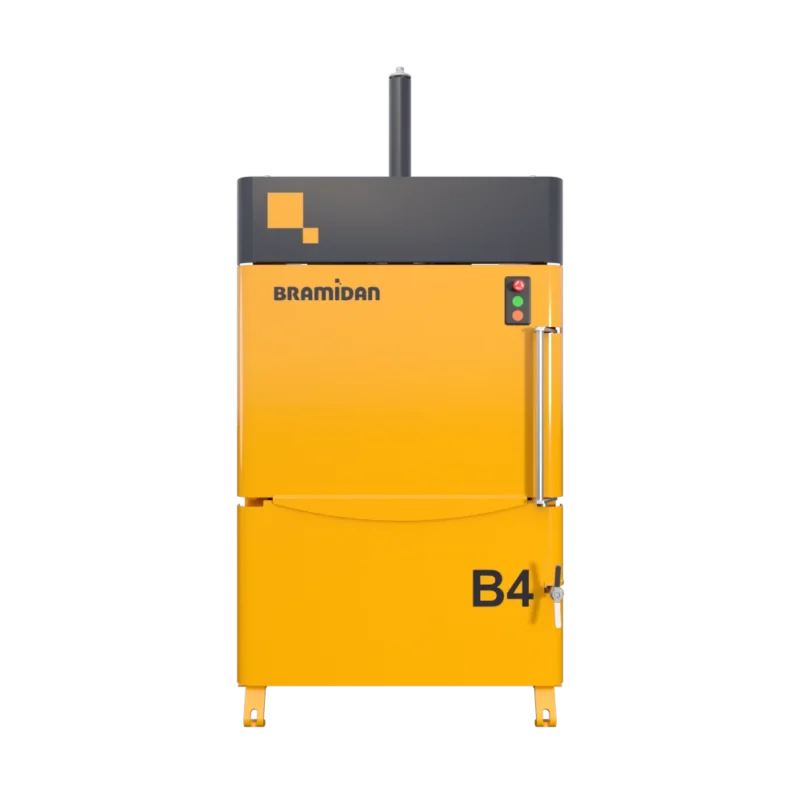

Baler B4 Textile
VERTICAL BALER
VERTICAL BALER
No retainer dogs inside chamber
The B4 textile is a dynamic machine for compacting clothing that is free of rips.
Manageable bales

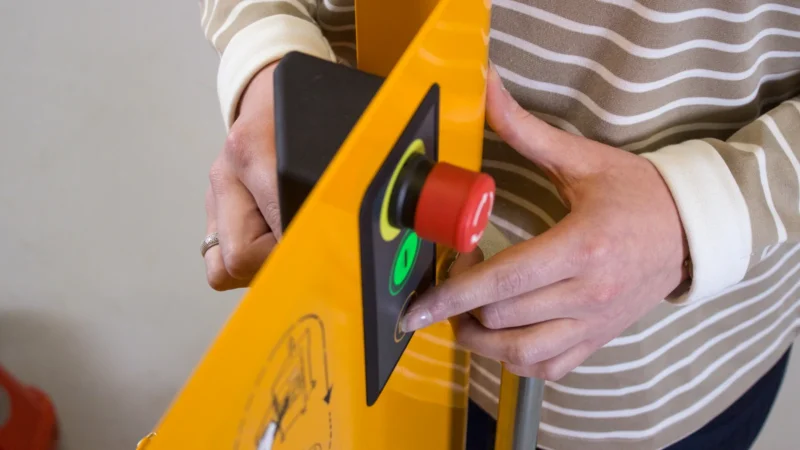

Finished bales are small and manageable after safely removed with the two-hand ejection system.
B4 Textile – Unique baler for clothing and textiles:
- Easy-to-use control panel
- Small base area and overall width (37 in.)
- Finished bales of just 30 x 20 x 24 in.
- Automatic ejection system
- Full bale indicator light
- Single-phase power connection

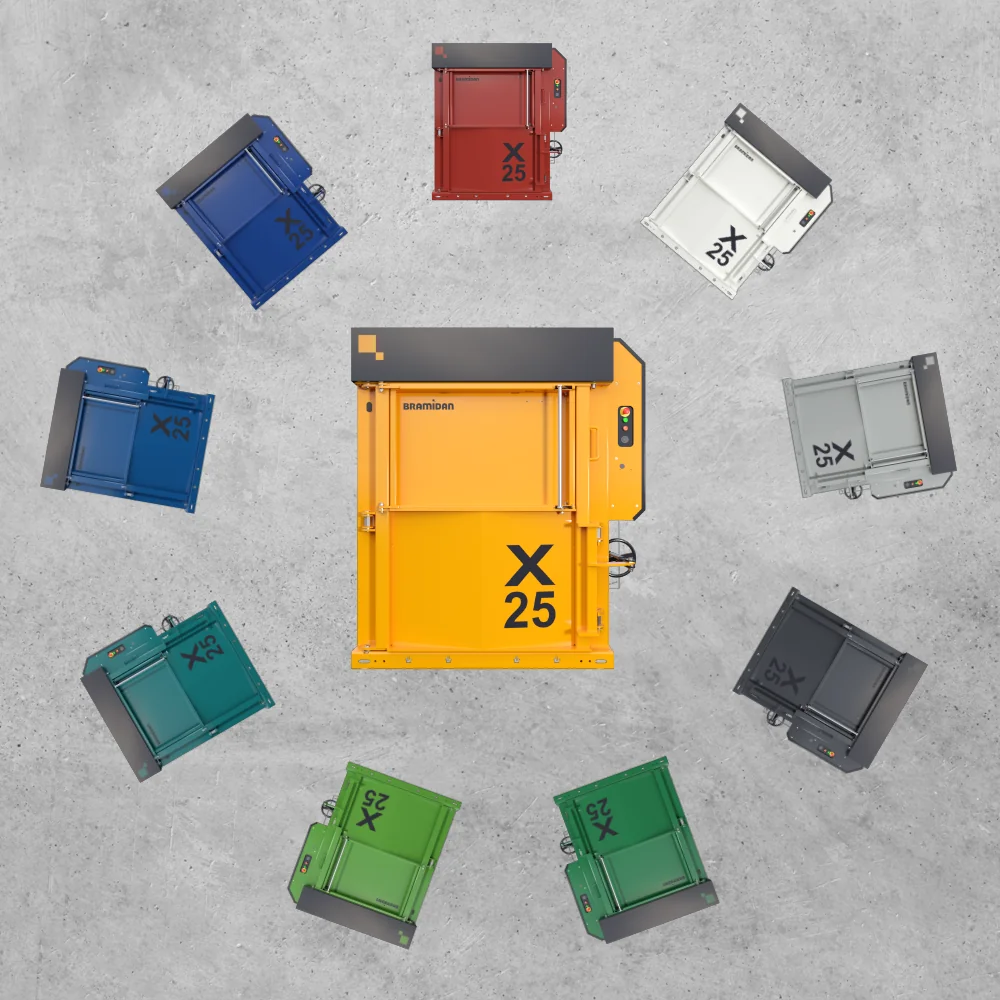

- Powder Coating provides durable finish in many colors
| Bale weight textile (lbs) | 55-175 |
| Press force (lbs) | 8,800 |
| Power supply | 110V 1-Phase 60Hz 10A |
| Motor (HP) | 1.0 |
| Noise Level (dB) | 57-60 |
| Cycle time avg. (sec) | 48 |
| Dimensions WxDxH (inch) | 37 x 28 x 78 |
| Weight (lbs) | 661 lbs |
| Feed opening WxH (inch) | 30 x 18 |
| Load height (inch) | 26 |
| Chamber height (inch) | 39 |
| Stroke (inch) | 26 |
| Number of ties | 2 |
| Type of tying | Twine |
| Full bale light | Yes |
| Bale eject | Automatic |
| Waste volume | Small |
Monitor & Analyze Your Equipment
Combine our BRA-IN services to fit your needs
All of our balers are usually very quiet and can be placed in a variety of work environments without causing a disturbance.
Our B-series vertical balers have a very low noise level that never exceeds 57 – 68 decibels. The noise is comparable to that of a vacuum cleaner or air conditioning system.
Our X-series vertical balers have an even lower noise level that does not exceed 59 decibels. The noise is equivalent to conversational speech.
The best place to install your baler depends on your internal work procedure and waste flow. We suggest placing the baler near the waste source to allow for more efficient waste handling.
We are happy to help you find the best location for your machine.
When the baler is full, the orange full-bale indicator light located under the start button will blink. The press plate will also stay in the down position. This prevents the chamber from being overfilled.
We also offer our BRA-IN monitoring solution, which automatically updates you when your machine is full. You will receive a text or email when the bale is finished, telling you it is time to tie off and eject. Our monitoring solution also allows you to notify your recycler or hauler when an agreed upon number of bales are ready for pickup. Learn more about BRA-IN Bramidan Intelligent Monitoring Solution.
Yes, Bramidan balers are safe to operate. Our vertical balers meet the highest safety standards. All of our equipment is accredited by ANSI Z245.5 and OSHA Safety Standards. All control panels are UL and CUL approved.
To protect users, all moving parts are placed inside the machine. In order to eject a finished bale, the operator must stand safely next to the machine and use a two-handed ejection system.
