VERTICAL BALER

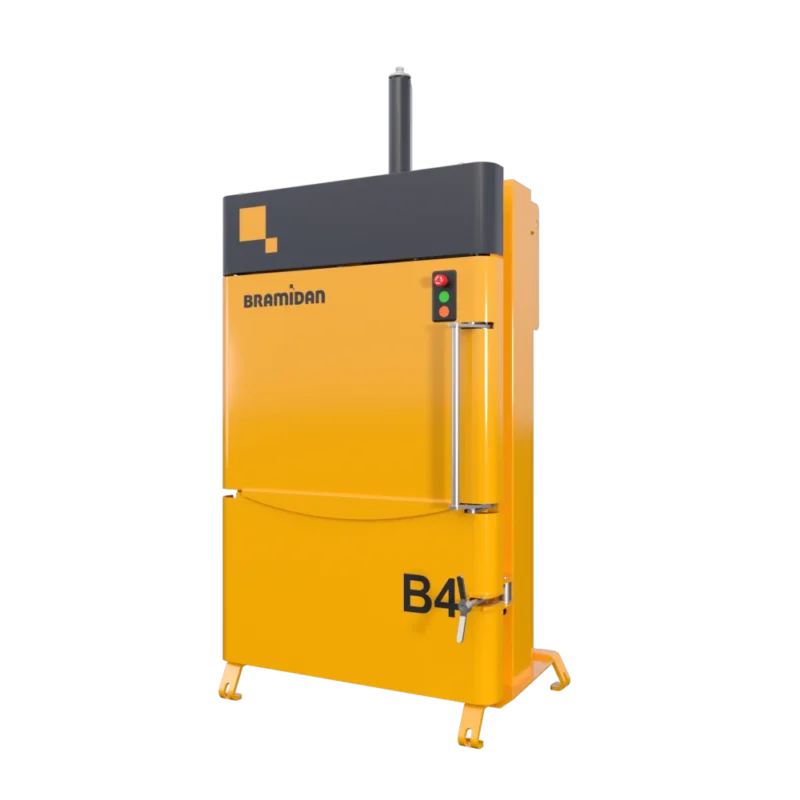

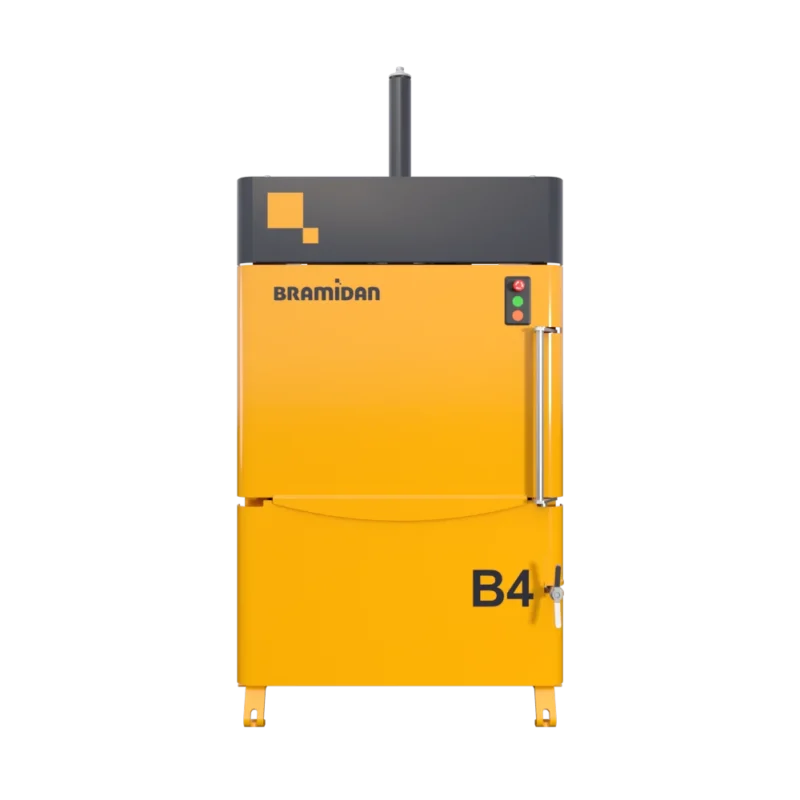

Baler B4

With 8,800 lbs. of press force, a deep stroke, and efficient retainer dogs, the B4 is a dynamic machine that has many more features than the standard small footprint baler.

Buy for as low as

$ 8,495

Excluding tax

Color

RAL 1007

RAL 3016

RAL 5002

RAL 5017

RAL 5021

RAL 6018

RAL 6032

RAL 7015

RAL 7035

RAL 9003

*Bramidan yellow at no extra cost. Other colors can be ordered at an additional cost.

DOWNLOAD BROCHURE

Add to your quote

VERTICAL BALER

Baler B4

Popular options

Connected Bramidan balers shown on map via BRA-IN software on smartphone and tablet

BRA-IN lets you monitor your balers intelligently

Ask for Quote

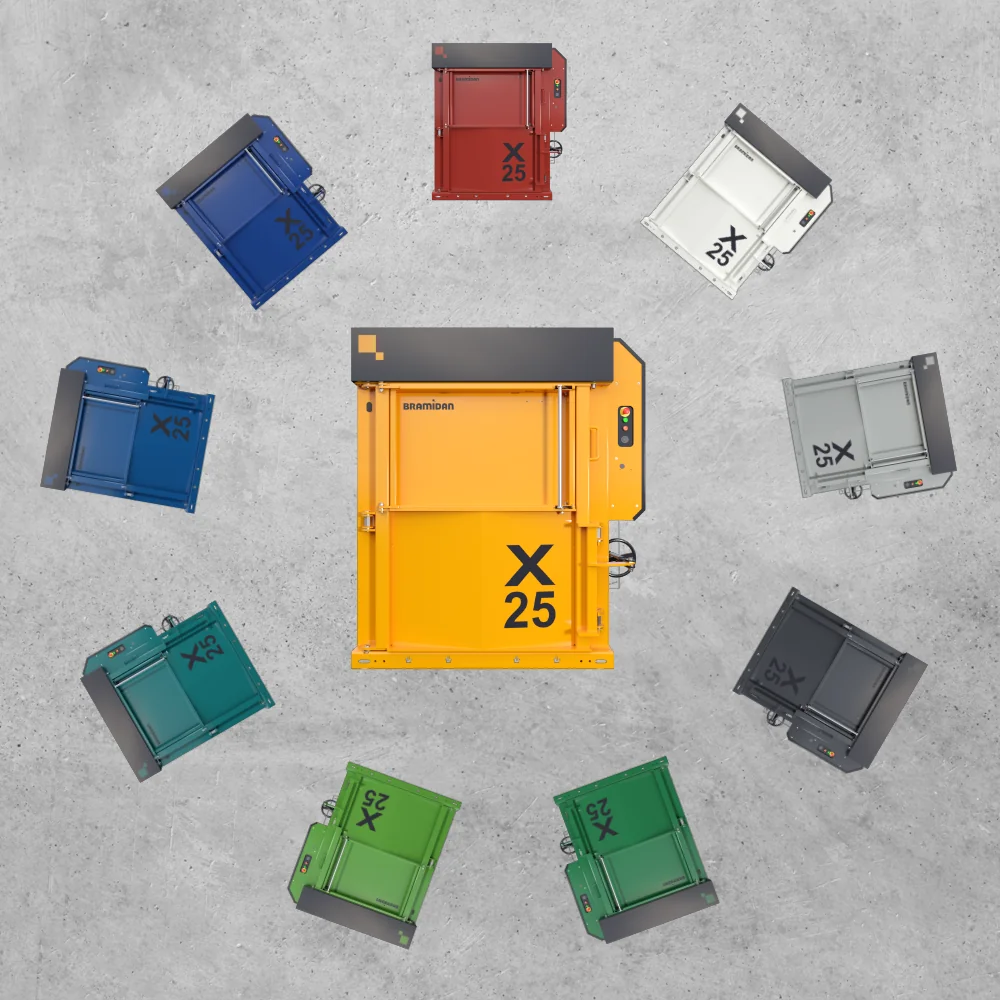

Bramidan X25 baler shown in multiple RAL colours, illustrating powder-coated finish options

Other baler colours available

Ask for Quote

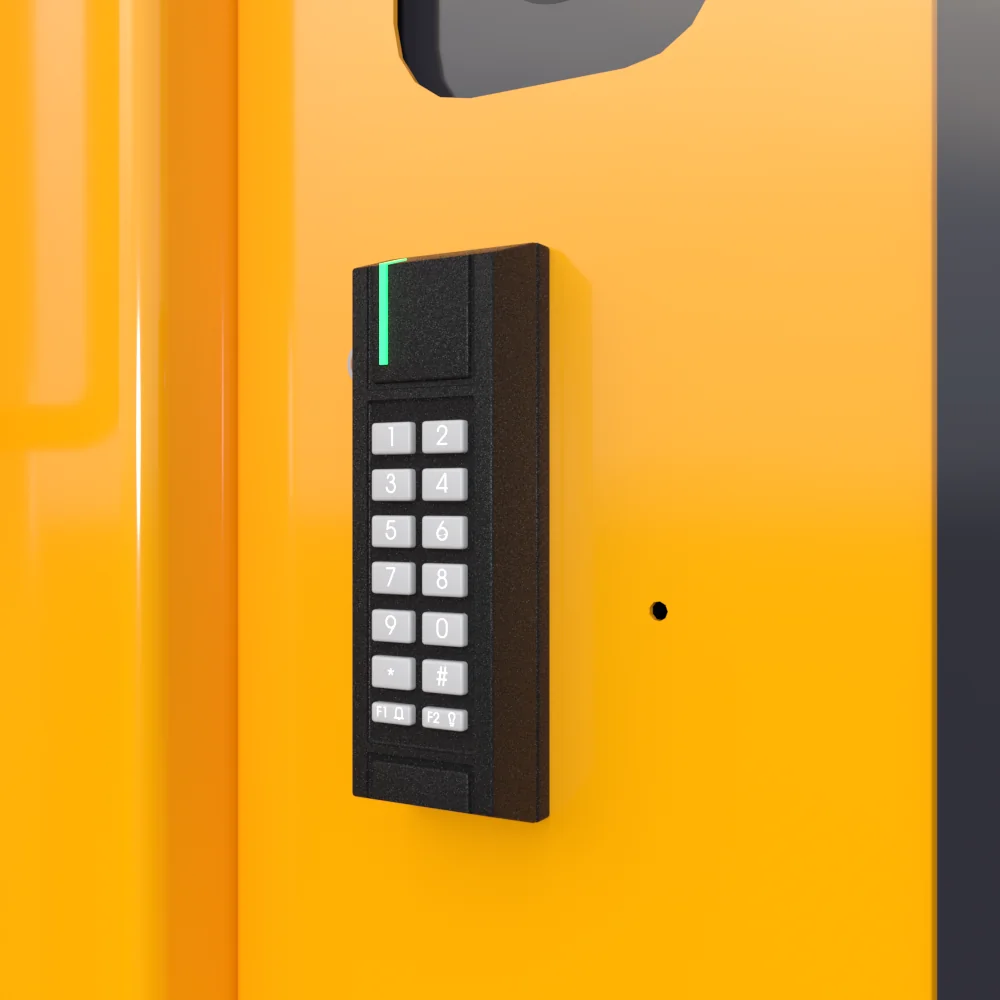

Close-up of digital autolock with restricted access

Auto lock limits access to your baler

Ask for Quote

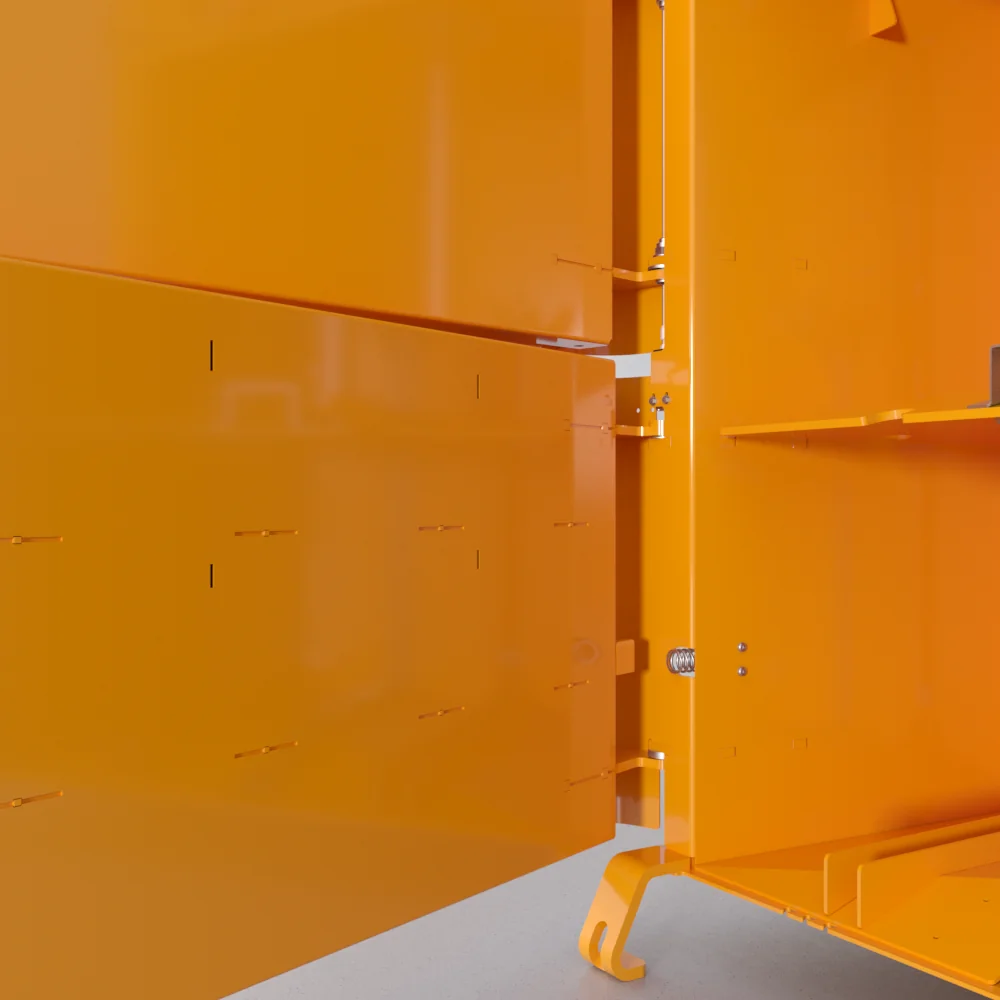

Detailed view of baler door showing no retainers

Prevent clothing damage

Ask for Quote

Quote details

VERTICAL BALER

Baler B4

Overview

How to operate

Safety

Technical specifications

Powerful and compact

The B4 is a small machine that packs a powerful punch with a high press force and an automatic ejection system.

Safe to operate

Users safely eject finished bales using the two-hand ejection system.

B4 – Efficient small footprint baler:

Automatic ejection system
Full bale indicator light
Very low noise level (<60 dB)
Low overall height (6.5 ft.) and small base area (3 ft.)
Finished bales weigh 85 – 155 lbs.
Easy and convenient operation in front of baler
Powder Coating provides durable finish in many colors

How does the B4 baler work?

Time-saving and easy waste handling

Load your recyclables into vertical baler.
A full-bale light tells you when the baler is full.
Tie off and eject the compacted bale.
Remove the bale with a pallet jack for storage untill collection.

Bramidan B3 and B4 balers in use for compacting cardboard waste thumbnail

The B4 baler is safe and easy to operate:

Our equipment has the highest level of safety – don’t settle with less!

Bramidan B4 baler with two-hand ejection system for safety

Bale weight cardboard (lbs)	85-130
Bale weight plastic foil (lbs)	110-155
Press force (lbs)	8.800
Power supply	110V 1-Phase 60Hz 10A
Motor (HP)	1.0
Noise Level (dB)	57-60
Cycle time avg. (sec)	48
Dimensions WxDxH (inch)	37 x 28 x 79
Weight (lbs)	661
Feed opening WxH (inch)	30 x 18
Load height (inch)	26
Chamber height (inch)	39
Stroke (inch)	26
Number of ties	2
Type of tying	Twine
Full bale light	Yes
Bale eject	Automatic
Waste volume	Small

Waste types

Cardboard

Plastic foil

Paper

Waste Volume

Small

FEED OPENING

30 x 18inches

BALE SIZE

30 x 20 x 24 Inches

PRESS FORCE

8,800 lbs

BALE WEIGHT

Cardboard (lbs) : 85-130
Plastic foil (lbs) : 110-155

Product Options

Customize your machine with the perfect product options for your needs

VERTICAL BALER B4

BRA-IN lets you monitor your balers intelligently

Gain remote access to your baler with our intelligent fleet monitoring system, BRA-IN. You see balers full, service status, number of collections etc. and optimize your Total Cost of Ownership.

Ask for Quote

Other baler colours available

Order your baler in any available RAL colour. Custom colour is not available for the top and side covers, the press plate, and the spindle. These stay our standard grey.

Ask for Quote

Auto lock limits access to your baler

Limit access to operate the baler with an automatic lock. You unlock the baler by using a PIN code or a magnetic key tag.

Ask for Quote

Prevent clothing damage

A chamber without retainers is the best decision when compacting clothing for resale. No retainers means no damage to clothing.

Ask for Quote

Monitor and Optimize with BRA-IN

Get complete visibility into your waste management with BRA-IN – our smart IoT solution for balers and compactors.

With real-time data and automated notifications, you can make better decisions, cut operational costs, and document your sustainability efforts.

BRA-IN stands for Bramidan Intelligence and connects your equipment directly to an easy-to-use platform – letting you track fill levels, optimize pickups, and schedule maintenance – all in one seamless solution.

Hero BRA-IN - phone and tablet and balers and compactors on a map

Combine our BRA-IN services to fit your needs

Remarkably Low Noise Level

Most balers run at around 70-80 dB. At that level they can be harmful. People do not think to wear ear protection while running a baler, and with our baler you never have to, as we have mitigated the noise.

Many people miss the significance of the low noise levels you get when choosing a Bramidan baler. With the prevalence of earbuds and other devices in our ears most of the time in our leisure, hearing loss is a serious threat. What most people don’t understand about decibels is that their calculation is at a ratio. So the difference between 1 decibel and 10 is a lot in sound comparison.

30dB

50dB

75dB

100dB

160dB

57-60 dB

Whisper

Refrigerator

Other balers

Cars on highway

Turbojet engine

FAQ

VERTICAL BALER B4

Most Common Questions & Answers

Do you do rentals?

If you aren’t ready to invest in a baler, we offer both rental and leasing options. Please contact a member of our sales team for more information on renting and leasing a machine.

How do I know which baler model I need?

The baler model that is best for you depends on the type and volume of material and the amount you generate daily. It also depends on the amount of space you have at your facility.

Using this information, we can determine the proper waste solution for you and your company. Our sales team is happy to work with you to find the best fit for your company’s structure and internal work processes.

How to get rid of empty shoe boxes that take up a lot of space?

You can easily throw whole shoe and boot boxes into any of our small footprint balers. These balers is designed to take up a minimal amount of space.

View the filling opening dimensions on our balers under Product Specifications.

How long is the press cycle?

The press cycles are very fast. All of our machines have a press cycle of less than 43 seconds.

Is it possible to handle bales without fork lifts and ramps?

Yes, it is unnecessary to use a forklift to remove finsihed bales form our B3 and B4 small footprint balers. If needed, we can adjust the machine to make smaller bales which are no heavier than 55 – 65 lbs.

Do I have to tie the bales myself?

Yes, our balers require manual tying. However, it is very easy and quick to tie a finished bale with our unique tying system.
