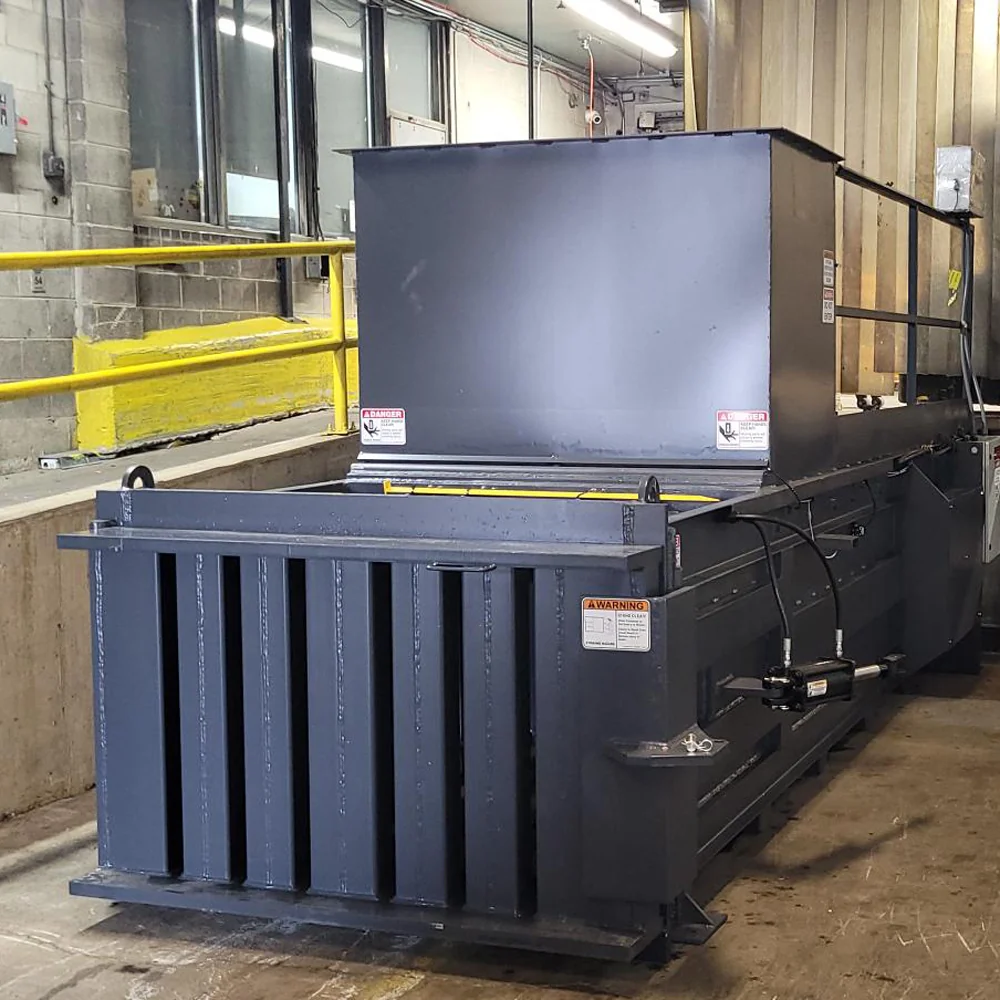

HORIZONTAL BALER
F66 Closed-End Baler
HORIZONTAL BALER
HORIZONTAL BALER
High Press Force
The twin 6 inch cylinders provide a high press force and excellent “shearing” capabilites (cutting of the material).
Multi Material Baler
The full extension of the cylinders allow this baler to push out each individual bale as it is made, making it excellent for multi mateiral sites.
F66 Closed End Full penetration horizontal baler:
- 60″W × 30″H × up to 48″L bale
- 6-wire manual “over-the-top” tie (use regular downstroke wires)
- (2) 6″ bore baling cylinders
- Anderson hopper
- Slatted floor and platen bottom over T-1 wear liners
- Adjustable/replaceable/flippable punch-&-tear shear knife system
- Electric-eye auto-actuator
- Hydraulically-actuated bale door with auto bale decompression

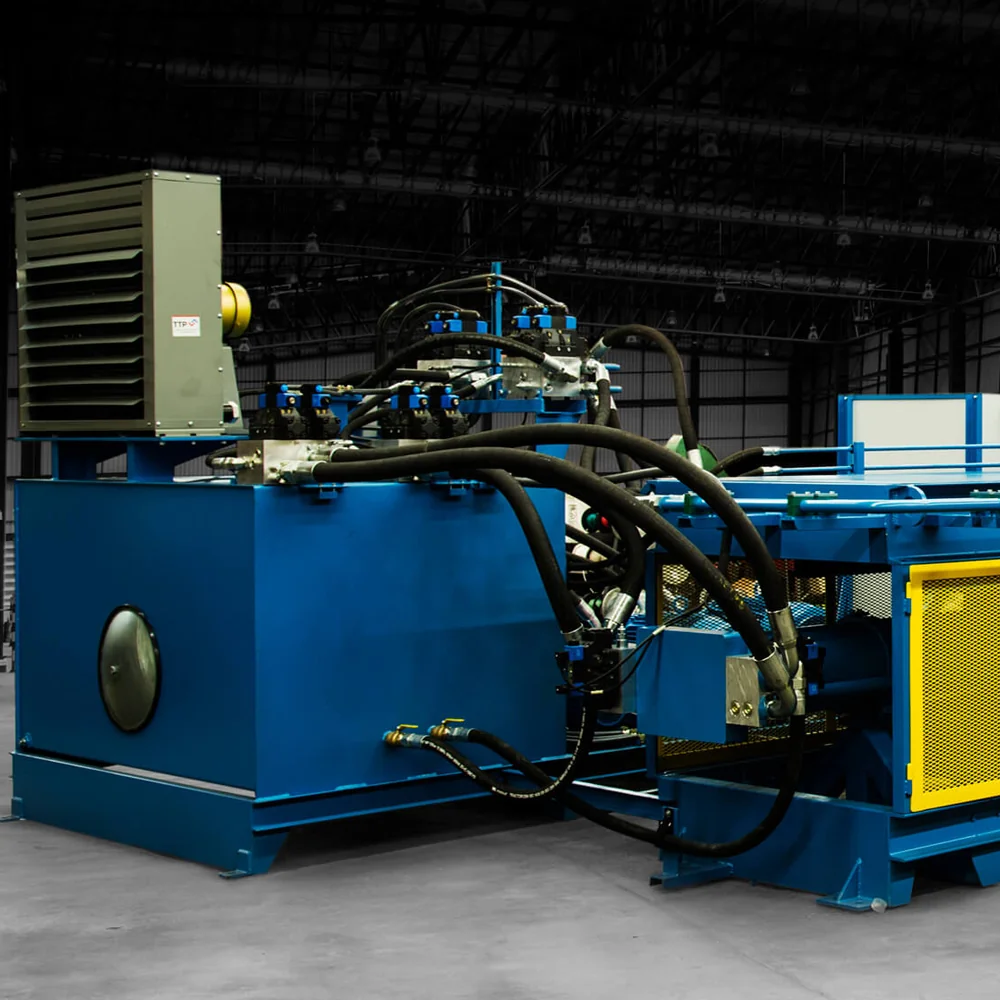

- 480 V 60 Hz. 3Ø 20 HP power unit (including fluid)
- PLC controls with digital display for settings, faults
- “OSHA Blue” industrial ename
Continuous filling of waste with efficient work flow.

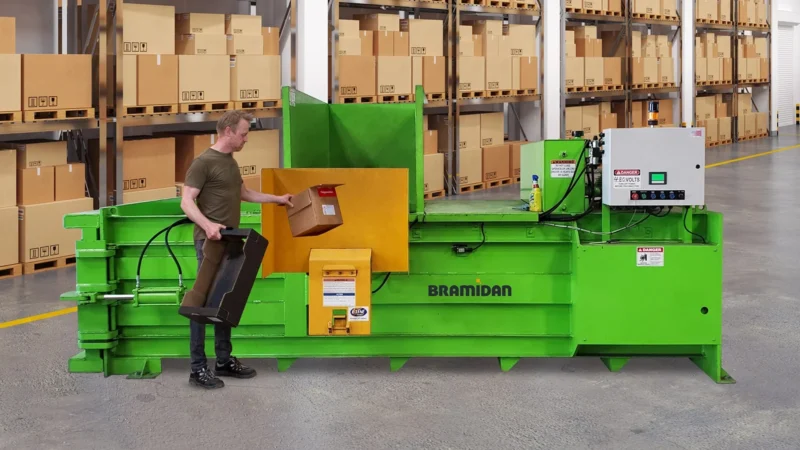

- Toss your cardboard or plastic waste into the hopper.
- The press cycle is started by an automatic light barrier.
- Bales are automatically tied and pushed out of the channel.
- Use a pallet jack to remove the finished bales.
| Bale weight cardboard (lbs) | 1,000–1,400 |
| Bale weight plastic foil (lbs) | 1,100–1,500 |
| Press force (lbs) | 140,000 |
| Waste volume | Medium / Large |
Monitor & Analyze Your Equipment
Combine our BRA-IN services to fit your needs
The main difference between the two baler types is the direction of their press stroke.
Vertical balers compress waste materials with a vertical downward force. Waste materials are thrown into a chamber and a press plate moves from the top of the chamber towards the bottom. When a cardboard bale or plastic bale has been made, it is tipped out of the vertical chamber onto a pallet.
Horizontal balers process waste differently than vertical balers. Recyclable waste is thrown into a hopper, and a platen from the side compresses the material with a horizontal force until a bale is complete. The bale is then tied off with wires and pushed out of the machine on two guide rails.
With regard to waste types and volumes handled in vertical balers vs. horizontal balers, they can process many of the same waste materials. Horizontal balers can compact larger bales and a higher volume per day than vertical balers. Furthermore, horizontal balers can be used with in-ground or above-ground conveyor belts, shredders, and air systems. Such applications provide convenience for the consumer and often require less manpower to operate.
But vertical balers take up far less space than horizontal balers, which allows them to be easily used in wider variety of applications than horizontal balers.
When choosing the proper baler, there are several questions to answer. Contact our specialists – they are ready to help you find the type of baler that will best suit the needs of your individual business.

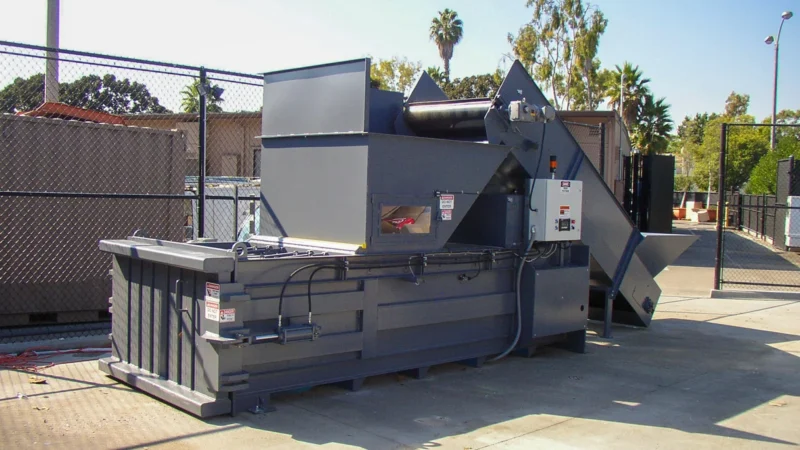

The horizontal baler can be placed both indoors and outdoors. The machine requires a solid foundation e.g. concrete or pavement that can support the weight.
If you place the baler outside, we recommend that you place it under a roof to protect it from wear and tear.
Our sales consultant will help you identify the best place to install your baler.
