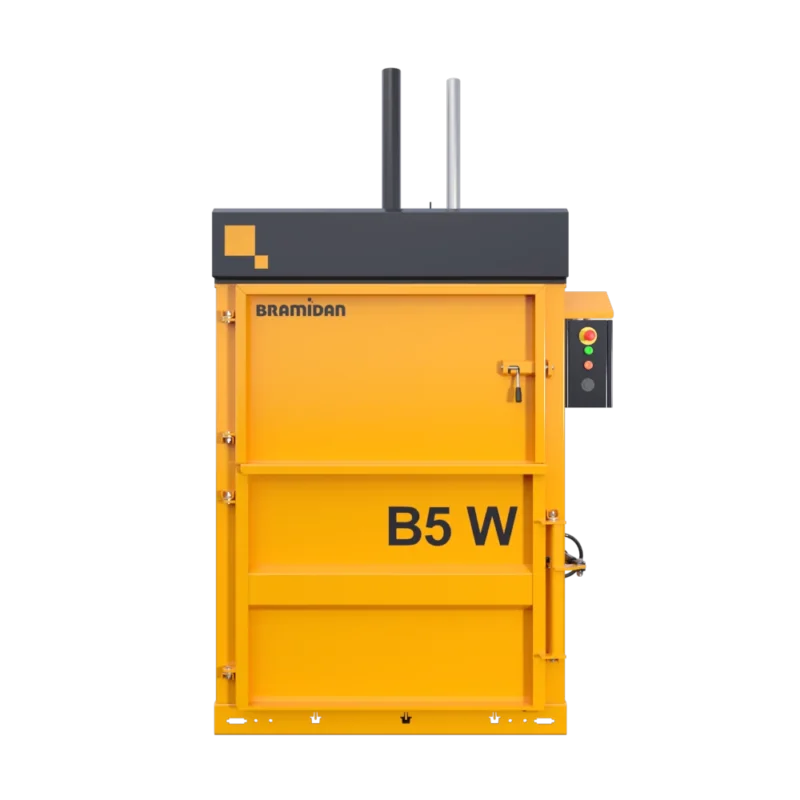

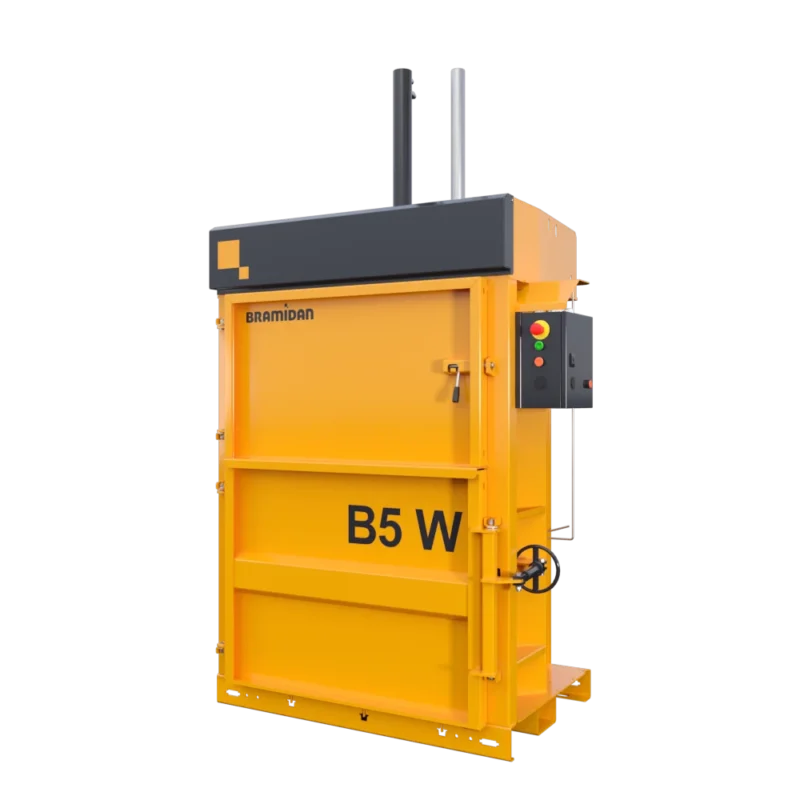

VERTICAL BALER

Baler B5 Wide

Only 65-68 db

The B5 Wide is perfect for customers with a small amount of bulky waste, like wide cardboard boxes.

Buy for as low as

$ 10,295

Excluding tax

Color

RAL 1007

RAL 3016

RAL 5002

RAL 5017

RAL 5021

RAL 6018

RAL 6032

RAL 7015

RAL 7035

RAL 9003

*Bramidan yellow at no extra cost. Other colors can be ordered at an additional cost.

Technical specifications

Add to your quote

VERTICAL BALER

Baler B5 Wide

Popular options

Intelligent baler data collection reduces baler downtime

Ask for Quote

Block access to baler controls with auto lock

Ask for Quote

Balers in custom colours

Ask for Quote

Baler feet lets you lift your baler from the front

Ask for Quote

Quote details

VERTICAL BALER

Baler B5 Wide

Overview

How to operate

Safety

Technical specifications

Wide feed opening

An extra wide feed opening to accommodate large and bulky materials. Toss large boxes straight into the machine without breaking them down.

Suitable for any application

This single-phase machine is user friendly and easy to install in a variety of different industries.

B5 Wide – Perfect for handling large boxes:

High capacity – large output
Wide feed opening (39 in.)
Retainer dogs hold down compacted waste
Auto-eject system
Store and refill bale cord in front
Single-phase power pack
Meets ANSI and OSHA standards
Powder Coating provides durable finish in many colors.

How does the B5 Wide baler work?

Time-saving and easy waste handling

Load your recyclables into vertical baler.
A full-bale light tells you when the baler is full.
Tie off and eject the compacted bale.
Remove the bale with a pallet jack for storage untill collection.

The B5 Wide baler is safe and easy to operate

Our equipment has the highest level of safety – don’t settle with less!

Bale weight cardboard (lbs)	175-245
Bale weight plastic foil (lbs)	200-290
Press force (lbs)	11,000
Power supply	110V 1-Phase 60Hz 20A
Motor (HP)	2.0
Noise Level (dB)	65-68
Cycle time avg. (sec)	32
Dimensions WxDxH (inch)	54 x 36 x 94/77
Weight (lbs)	1,325
Feed opening WxH (inch)	39 x 21
Load height (inch)	36
Chamber height (inch)	51
Stroke (inch)	30
Number of ties	3
Type of tying	Twine
Full bale light	Yes
Bale eject	Automatic
Waste volume	Small

Waste types

Cardboard

Plastic foil

Paper

Waste Volume

Small

FEED OPENING

39 x 21inches

BALE SIZE

39 x 24 x 30 Inches

PRESS FORCE

11,000 lbs

BALE WEIGHT

Cardboard (lbs) : 175-245
Plastic foil (lbs) : 200-290

Product Options

Customize your machine with the perfect product options for your needs

VERTICAL BALER B5 Wide

Intelligent baler data collection reduces baler downtime

BRA-IN is a data based communication service. Access live status of your machines and receive immediate notification if a baler needs attention.

Ask for Quote

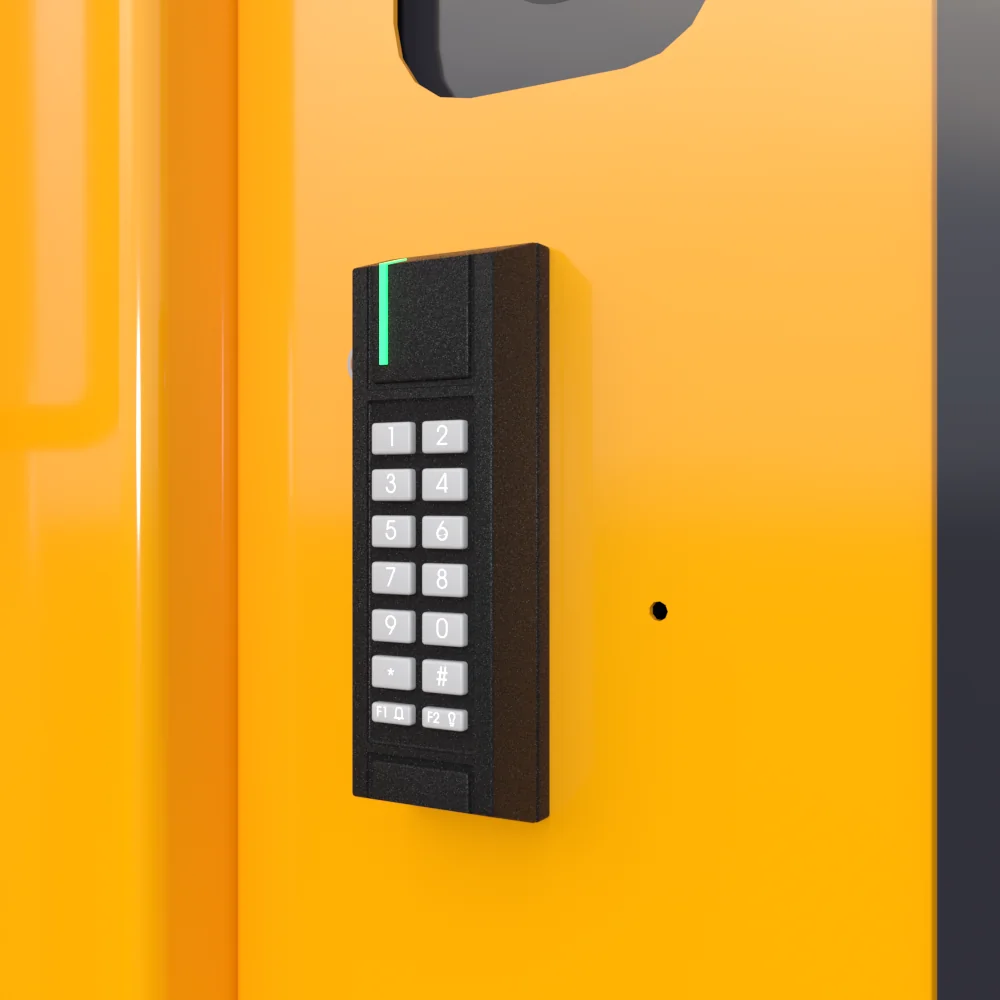

Block access to baler controls with auto lock

The auto lock lets you decide who can use your baler. Everyone can load it, but it requires a PIN code or a personal key tag to run press cycles.

Ask for Quote

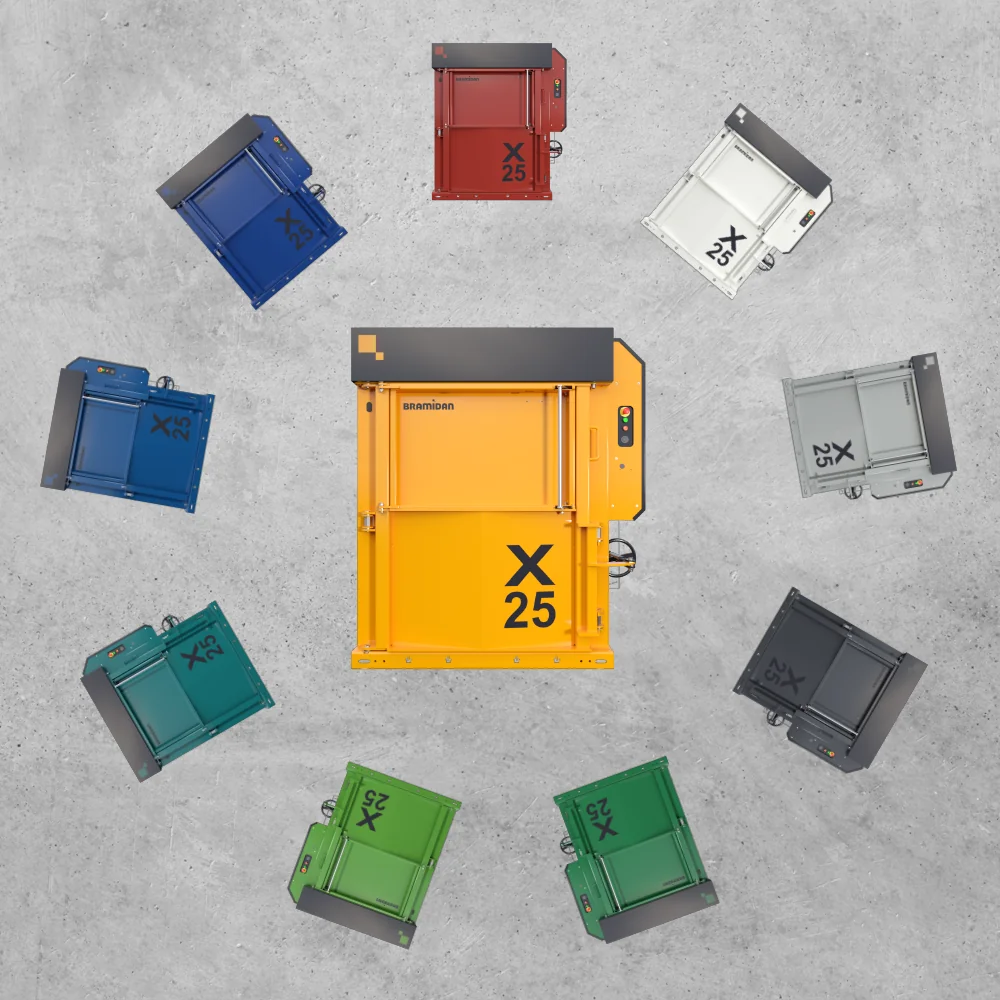

Balers in custom colours

Choose a new baler colour among any RAL colour. The grey coloured top and side hood, press plate, and spindle cannot be customized.

Ask for Quote

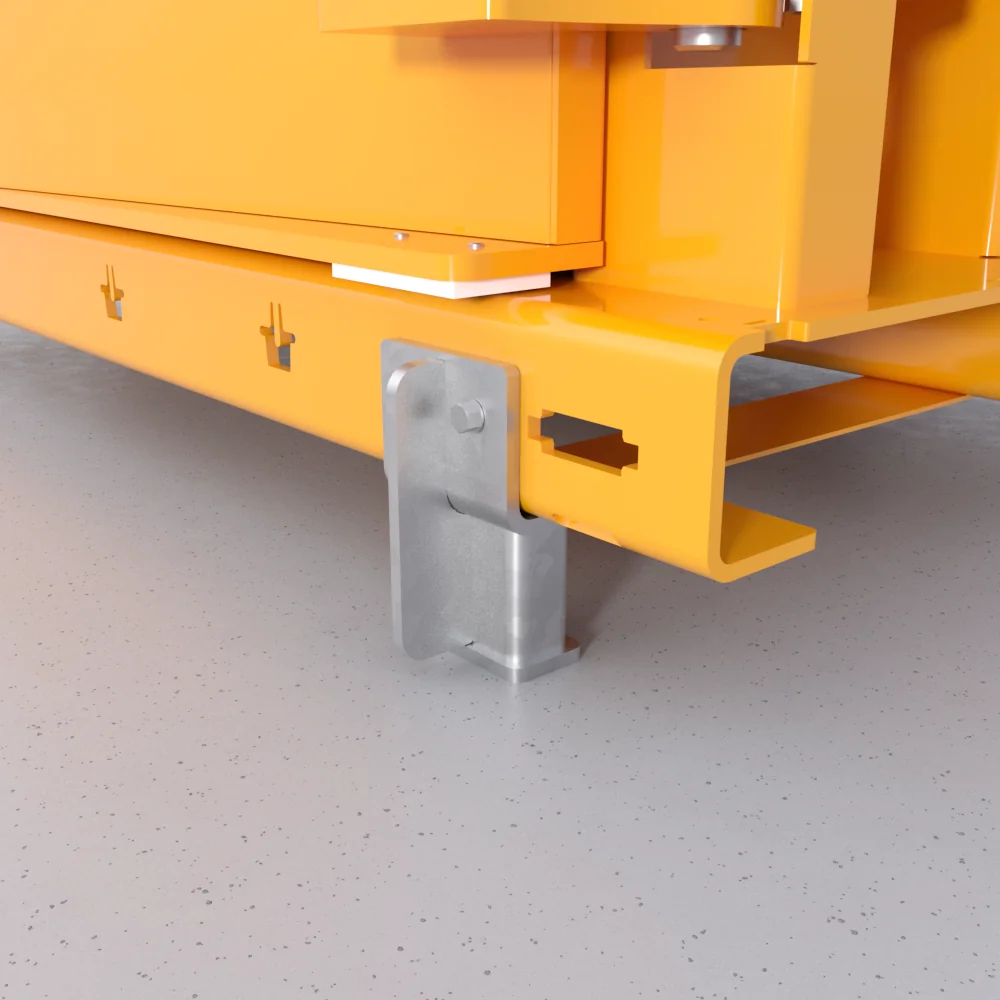

Baler feet lets you lift your baler from the front

Install feet under your baler to lift it from the ground. Ideal if you need to lift the baler from the front instead of from the side.

Ask for Quote

Monitor & Analyze Your Equipment

Make the most of your equipment with our intelligent monitoring solution. We call it BRA-IN, Bramidan Intelligence. With BRA-IN you can make faster and better decisions, reducing your costs of operation while minimizing your impact on the environment.

In our business BRA-IN is short for Bramidan Intelligence, and a collective name for our special developed IOT system. This links all connected compaction equipment with IT systems, providing you with a 360 degree view of your equipment minimizing direct and indirect waste handling costs over time.

Combine our BRA-IN services to fit your needs

Remarkably Low Noise Level

Most balers run at around 70-80 dB. At that level they can be harmful. People do not think to wear ear protection while running a baler, and with our baler you never have to, as we have mitigated the noise.

Many people miss the significance of the low noise levels you get when choosing a Bramidan baler. With the prevalence of earbuds and other devices in our ears most of the time in our leisure, hearing loss is a serious threat. What most people don’t understand about decibels is that their calculation is at a ratio. So the difference between 1 decibel and 10 is a lot in sound comparison.

30dB

50dB

75dB

100dB

160dB

B5 Wide

65-68 dB

Whisper

Refrigerator

Other balers

Cars on highway

Turbojet engine

FAQ

VERTICAL BALER B5 Wide

Most Common Questions & Answers

Is the surface of your balers durable?

All of our balers receive a high-quality, anti-rust treatment to strengthen and protect the surfaces, as well as flaking paint.

How much noise does a baler make?

All of our balers are usually very quiet and can be placed in a variety of work environments without causing a disturbance.

Our B-series vertical balers have a very low noise level that never exceeds 57 – 68 decibels. The noise is comparable to that of a vacuum cleaner or air conditioning system.

Our X-series vertical balers have an even lower noise level that does not exceed 59 decibels. The noise is equivalent to conversational speech.

What can I compact in the Bramidan B-series balers?

Our B-series balers are designed to compact cardboard, paper, and dry soft plastic (shrink wrap).

Contact a member of our sales team prior to compacting any other types of materials in your baler.

Can your machine weigh the bales for me?

No, our balers do not have a built-in scale. However, the bale size and weight do not fluctuate by much and will usually be the same.

Our BRA-IN monitoring solution allows you to view the average weight and number of bales made in your baler each week and/or month. You can also create reports for recycling compliance.

Do you have balers in other colours?

Yes, we do offer custom colors as special orders for an additional fee.

The standard yellow color of our balers is based on a scientific study of the basic human psychology that states yellow captures our attention more than any other color. The Bramidan yellow means that our balers are very easy to see in all types of working environments, which reduces the overall risk for accidents.

What kind of monitoring technology do your machines have?

All of our balers are equipped with BRA-IN technology. BRA-IN is a web portal for intelligent fleet monitoring. Using a modem, machine data is collected.

With BRA-IN you can:
